Technical data (manufacturer information, German terms)
| Größe | 50 |
|---|
| d1 | 20 |
|---|
| Form | AC - Spannarm mit Langloch, mit 2 Flankenscheiben und Andrückschraube GN 708.1 |
|---|
| Kennzeichen | R - rechtsschwenkend |
|---|
| Werkstoff | AL - Aluminium |
|---|
| FS in N Spannkraft bei 6 bar | 700 |
|---|
| a | 30 |
|---|
| b1 | 85 |
|---|
| b2 | 65 |
|---|
| b3 | 17,5 |
|---|
| b4 | 25 |
|---|
| d2 Druckluftanschlüsse | G 1/8 |
|---|
| Gewinde | M 10 |
|---|
| h1 | 100 |
|---|
| h2 ≈ gespannt | 105 |
|---|
| h3 ≈ entspannt Form A, AC | 172 |
|---|
| l1 | 31 |
|---|
| l2 | 77 |
|---|
| m1 | 85 |
|---|
| w1 Spannhub | 15 |
|---|
| Hub | 32 |
|---|
| w2 | 19 |
|---|
| max. Anzugsdrehmoment des Spannarms in Nm | 35 |
|---|
| d6 | M 10 |
|---|
| d8 | 8 |
|---|
| l3 | 26 |
|---|
| l4 | 26 |
|---|
| l5 | 40 |
|---|
| l6 | 60 |
|---|
| m4 | 66 |
|---|
| m5 | 53 |
|---|
| m6 | 40 |
|---|
| m7 | 46 |
|---|
| t2 | 20 |
|---|
| t3 | 20 |
|---|
| t4 | 15 |
|---|
| t5 ≈ | 6 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,742 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 875 |
|---|
| Order designation | GN 875-50-20-R-AC |
|---|
| EAN | 4045525525856 |
|---|

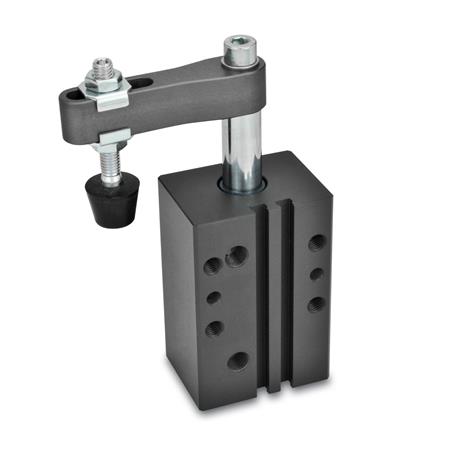

| Manufacturer designation (German) | Schwenkspanner, in Blockbauweise |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84679200 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
