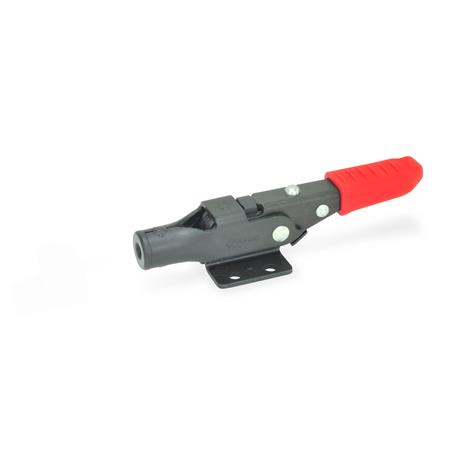

Technical data (manufacturer information, German terms)
| Größe | 700 |
|---|
| Form | T5 - ohne Zuganker, ohne Gegenhalter |
|---|
| Werkstoff | ST - Stahl |
|---|
| FH in N Haltekraft | 7500 |
|---|
| a | 28 |
|---|
| b1 | 60 |
|---|
| b2 | 54 |
|---|
| b3 | 41 |
|---|
| b4 | 26 |
|---|
| b5 | 50 |
|---|
| b6 | 50 |
|---|
| b7 | 11 |
|---|
| d1 | M 10 |
|---|
| d2 | 8,5 |
|---|
| d3 | 8,5 |
|---|
| d4 | 9 |
|---|
| d5 | 10 |
|---|
| h1 ≈ | 53 |
|---|
| h2 | 40,5 |
|---|
| h3 | 39 |
|---|
| l1 ≈ | 222 |
|---|
| l2 ≈ Form TG | 95,5 |
|---|
| l3 ≈ Form TT | 93 |
|---|
| l4 ≈ Form TU | 92 |
|---|
| l5 | 42 |
|---|
| l6 | 51 |
|---|
| m1 | 38 |
|---|
| m2 | 41,5 |
|---|
| m3 | 31 |
|---|
| m4 | 25,4 |
|---|
| m5 | 31 |
|---|
| s | 3,5 |
|---|
| w Hub | 19 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,686 kg |
|---|

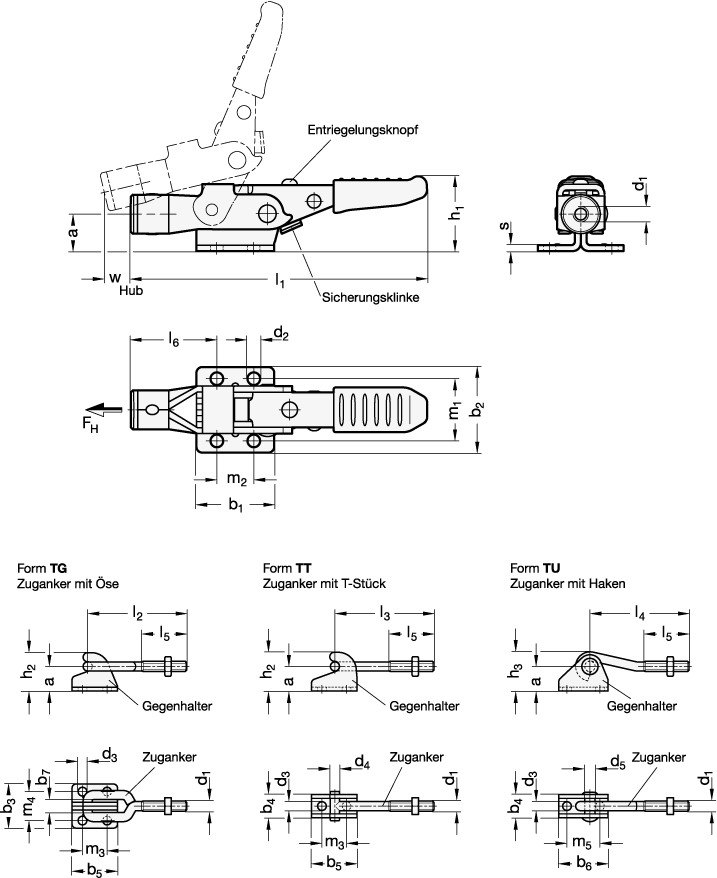

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 853 |
|---|
| Order designation | GN 853-700-T5 |
|---|
| EAN | 4045525796614 |
|---|
| Manufacturer designation (German) | Verschlussspanner mit Verriegelung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
