Technical data (manufacturer information, German terms)
| Größe | 130 |
|---|
| Form | CVF - offener Spannarm, mit 2 Flankenscheiben und Andrückschraube GN 708.1 |
|---|
| Werkstoff | C 10 - Einsatzstahl C 10 |
|---|
| FH in N Haltekraft | 1100 |
|---|
| a ≈ | 28 |
|---|
| b1 | 31,5 |
|---|
| b2 | 42 |
|---|
| b3 | 49 |
|---|
| b4 | 6,2 |
|---|
| d1 | M 6 |
|---|
| d2 | 5,6 |
|---|
| h1 ≈ | 184 |
|---|
| h2 | 70 |
|---|
| h3 | 16 |
|---|
| h4 ≈ | 25,5 |
|---|
| h5 max. | 53 |
|---|
| l1 ≈ Form AVF Form CFV | 85 |
|---|
| l2 | 46,5 |
|---|
| l4 | 55 |
|---|
| m1 | 12,5 |
|---|
| m2 | 27 |
|---|
| m3 | 11 |
|---|
| m4 | 12,5 |
|---|
| m5 | 16 |
|---|
| m6 | 12,5 |
|---|
| r Form AVF Form CFV | 79 |
|---|
| s1 | 2,5 |
|---|
| w Verstellweg | 17,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,316 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 812.1 |
|---|
| Order designation | GN 812.1-130-CVF |
|---|
| EAN | 4045525796416 |
|---|

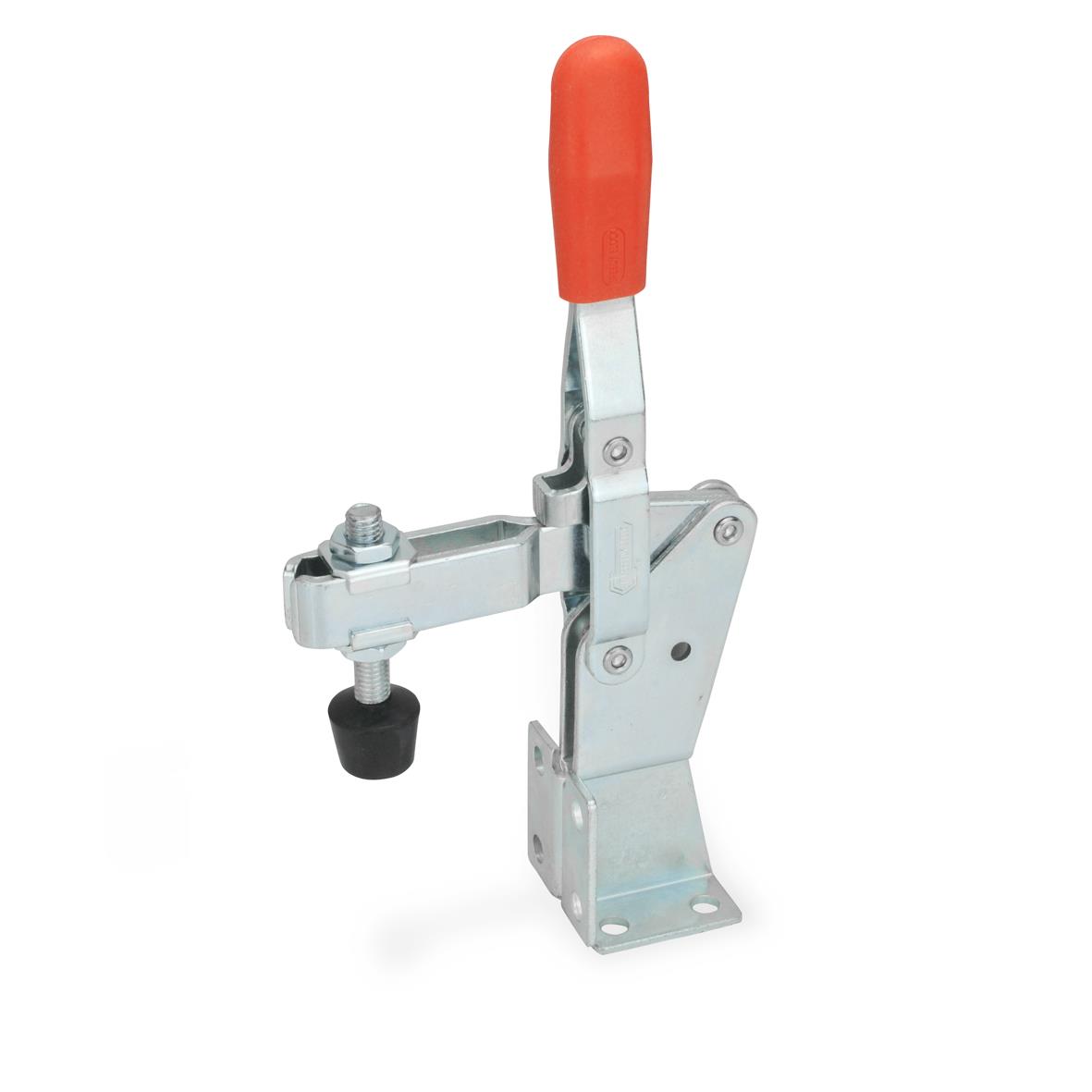

| Manufacturer designation (German) | Schnellspanner, Stahl, Spannhebel vertikal, mit Winkelfuß |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
