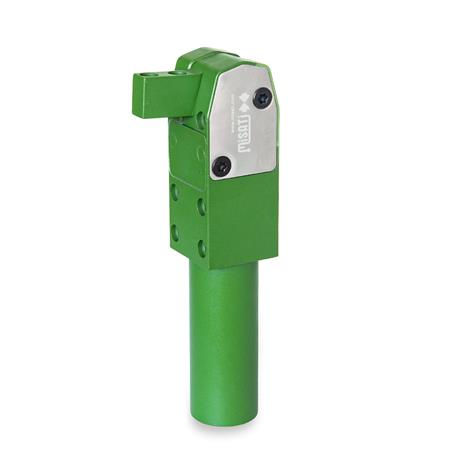

Technical data (manufacturer information, German terms)
| Größe | 20 |
|---|
| Form | BL - Spannarm horizontal |
|---|
| Oberfläche | FG - Polytetrafluorethylen (PTFE), grün |
|---|
| Werkstoff | ST - Stahl |
|---|
| max Spannmoment in Nm bei 6 bar | 60 |
|---|
| FS in N Spannkraft bei r bei 6 bar | 2220 |
|---|
| FH in N Haltekraft bei r | 7030 |
|---|
| a | 27 |
|---|
| b | 10 |
|---|
| d1 | 28 |
|---|
| Gewinde | M 5 |
|---|
| d3 | 7 |
|---|
| d4 | 4,2 |
|---|
| h1 | 16 |
|---|
| h2 | 51 |
|---|
| l1 | 150 |
|---|
| l2 | 37,5 |
|---|
| l3 | 70 |
|---|
| l4 | 21,5 |
|---|
| l5 | 4,5 |
|---|
| m1 | 12 |
|---|
| m2 | 7,5 |
|---|
| m3 | 17 |
|---|
| m4 | 34 |
|---|
| m5 | 22 |
|---|
| m6 | 13 |
|---|
| r | 27 |
|---|
| s | 32 |
|---|
| t | 13 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,640 kg |
|---|

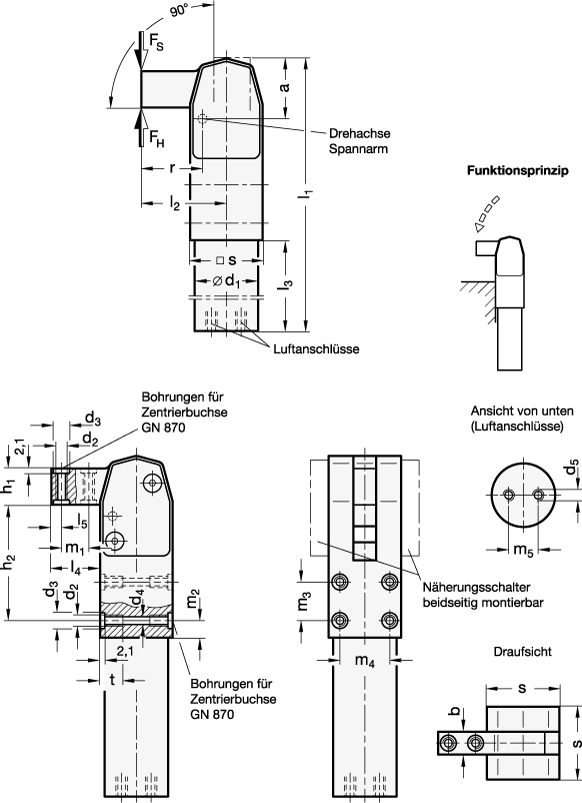

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 864 |
|---|
| Order designation | GN 864-20-BL-FG |
|---|
| EAN | 4045525552029 |
|---|
| Manufacturer designation (German) | Kraftspanner, pneumatisch |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84671190 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
