Technical data (manufacturer information, German terms)
| Durchmesser d1 | 16 |
|---|
| Gewindedurchmesser d2 | M 6 |
|---|
| Werkstoff | ST - Stahl |
|---|
| l1 | 26,5 |
|---|
| l2 | 33 |
|---|
| x16 | (31) |
|---|
| l3 | 7 |
|---|
| d3 | M 4 |
|---|
| s1 Höhe Spannarm | 16 |
|---|
| x17 | (14) |
|---|
| s2 | 6,5 |
|---|
| t nutzbare Einschraublänge der Andrückschraube | 24 |
|---|
| x18 | (22) |
|---|
| für Schnellspanner GN 810 GN 810.1 | 130 |
|---|
| GN 820 GN 820.1 GN 820.2 GN 820.3 GN 820.4 | 130 |
|---|
| GN 860 GN 862 GN 862.1 | 125 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,025 kg |
|---|

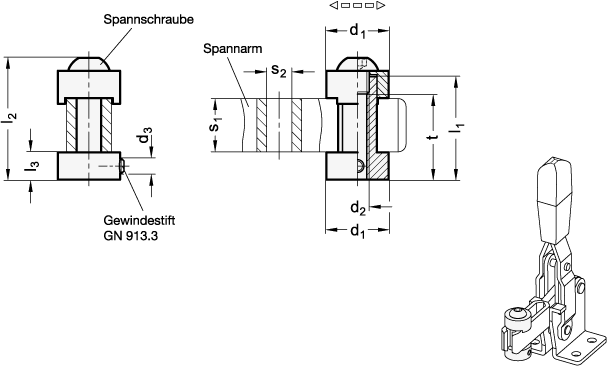

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 801 |
|---|
| Order designation | GN 801-16-M6 |
|---|
| EAN | 4045525790827 |
|---|
| Manufacturer designation (German) | Halter für Andrückschrauben, für Schnellspanner |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73182900 |
|---|
| eCl@ss 5.1.4 | 21049190 |
|---|
