Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Größe | 230 |
|---|
| Form | MF - offener Spannarm, mit 2 Flankenscheiben |
|---|
| FH in N Haltekraft | 1700 |
|---|
| a ≈ | 37 |
|---|
| b1 | 43 |
|---|
| b2 | 40 |
|---|
| b3 | 8,5 |
|---|
| d1 | M 8 |
|---|
| d2 | 6,5 |
|---|
| h1 | 102 |
|---|
| h2 | 69 |
|---|
| h3 | 18 |
|---|
| l1 | 195 |
|---|
| l2 | 52 |
|---|
| l3 | 113 |
|---|
| m1 | 28,5 |
|---|
| m2 | 24 |
|---|
| m3 | 8 |
|---|
| r | 70 |
|---|
| s | 3 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,350 kg |
|---|

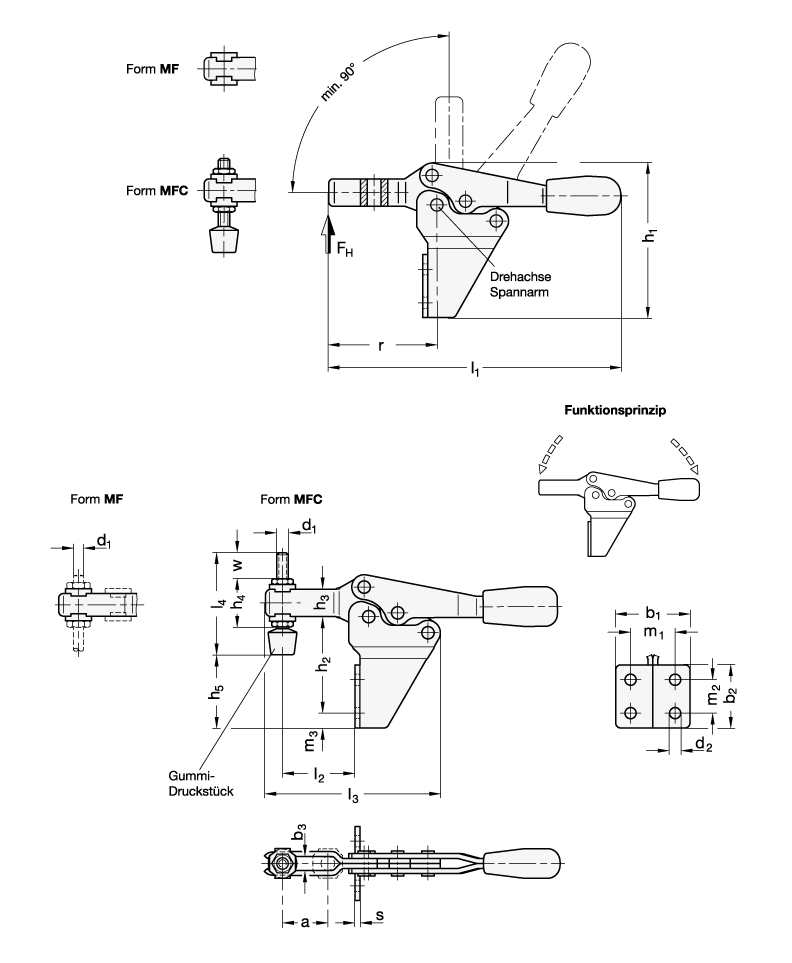

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 820.2 |
|---|
| Order designation | GN 820.2-230-MF-NI |
|---|
| EAN | 4045525711020 |
|---|
| Manufacturer designation (German) | Schnellspanner, Edelstahl, Spannhebel horizontal, für seitliche Montage |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
