Technical data (manufacturer information, German terms)
| Größe | 230 |
|---|
| Form | BL - offener Spannarm, mit 2 Flankenscheiben |
|---|
| Werkstoff | C 10 - Einsatzstahl C 10 |
|---|
| FH in N Haltekraft | 2000 |
|---|
| a ≈ | 40 |
|---|
| b1 | 43 |
|---|
| b2 | 12 |
|---|
| b3 | 6 |
|---|
| b4 | 8,5 |
|---|
| d1 | M 8 |
|---|
| d2 ≈ | 6,5 |
|---|
| h1 ≈ | 183 |
|---|
| h2 | 48 |
|---|
| h3 | 18 |
|---|
| l1 ≈ Form BL Form BLC | 110,5 |
|---|
| l2 ≈ | 58 |
|---|
| m1 | 18 |
|---|
| m2 | 21 |
|---|
| m3 | 6,5 |
|---|
| m4 | 6,5 |
|---|
| r ≈ | 104 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,444 kg |
|---|

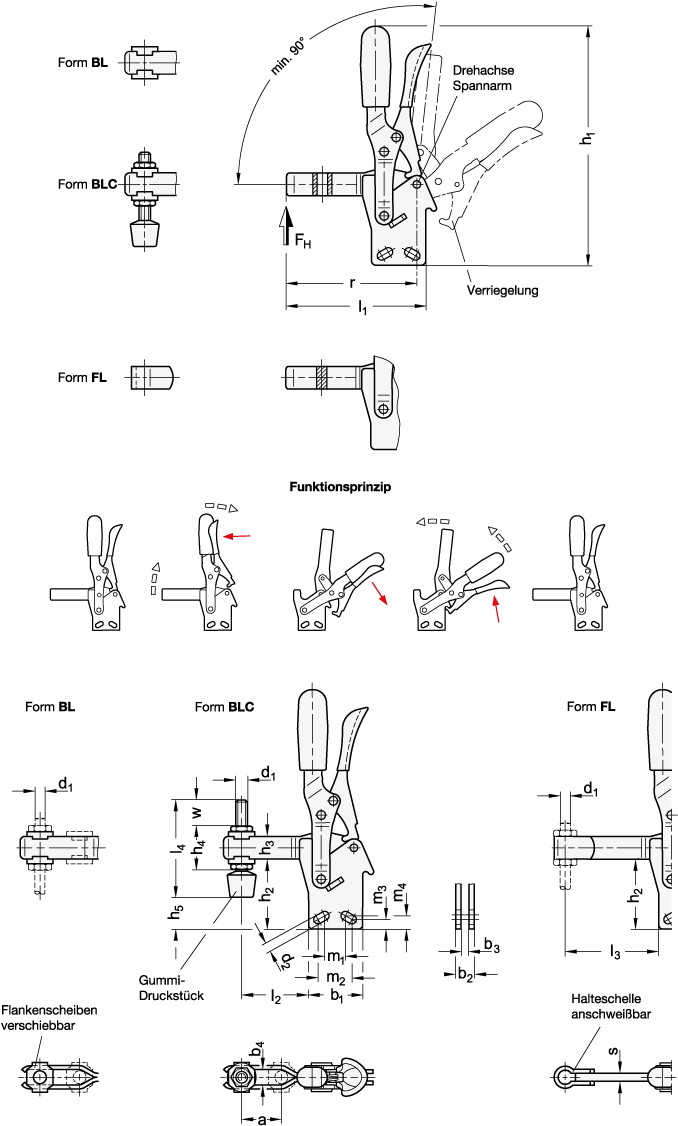

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 810.4 |
|---|
| Order designation | GN 810.4-230-BL |
|---|
| EAN | 4045525495180 |
|---|

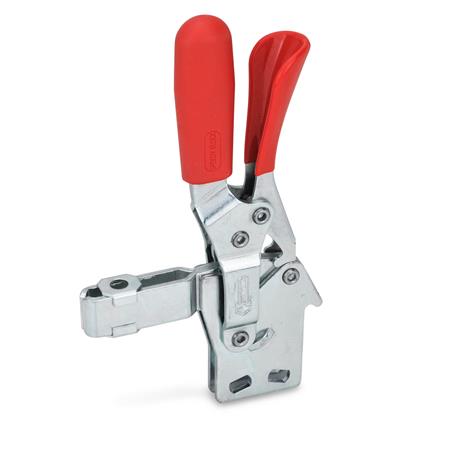

| Manufacturer designation (German) | Schnellspanner, Stahl, Spannhebel vertikal, mit Verriegelung, mit senkrechtem Fuß |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
