Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Größe | 160 |
|---|
| Form | T - ohne Zugbügel, mit Gegenhalter |
|---|
| FH in N Haltekraft | 1600 |
|---|
| a | 12 |
|---|
| b1 | 26 |
|---|
| b2 | 28 |
|---|
| b3 | 21 |
|---|
| b4 | 20 |
|---|
| b5 | 14 |
|---|
| d1 | M 4 |
|---|
| d2 | 4,3 |
|---|
| h1 ≈ | 26 |
|---|
| h2 | 18 |
|---|
| l1 ≈ | 98 |
|---|
| l2 min. | 11 |
|---|
| m1 | 19 |
|---|
| m2 | 5 |
|---|
| m3 | 16 |
|---|
| m4 | 5 |
|---|
| m5 | 10 |
|---|
| r ≈ bei w2 = 0 | 35 |
|---|
| s | 2 |
|---|
| w1 Hub | 25 |
|---|
| w2 ≈ Verstellweg | 11 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,071 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 851 |
|---|

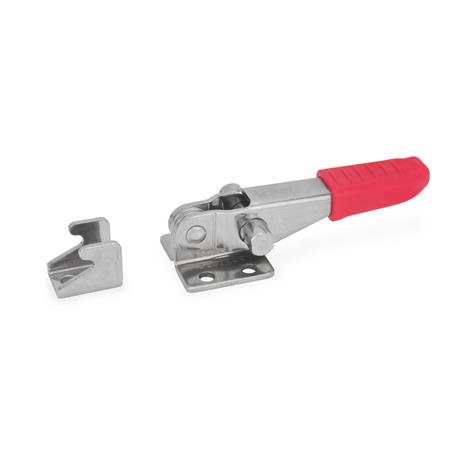

| Order designation | GN 851-160-T-NI |
|---|
| EAN | 4045525876613 |
|---|
| Manufacturer designation (German) | Edelstahl-Verschlussspanner für Zugspannung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
