Technical data (manufacturer information, German terms)
| Größe | 130 |
|---|
| Form | EP - massiver Spannarm, mit Halteschelle zum Anschweißen |
|---|
| Kennzeichen | M - Magnetkolben |
|---|
| Werkstoff | C 10 - Einsatzstahl C 10 |
|---|
| FH in N Haltekraft | 1600 |
|---|
| FS in N Spannkraft bei 6 bar ≈ | 800 |
|---|
| b1 | 47,5 |
|---|
| d1 | M 6 |
|---|
| d2 | 5,6 |
|---|
| d3 Druckluftanschlüsse | G 1/8 |
|---|
| Innen-Ø Anschlussschlauch | 4 |
|---|
| h1 ≈ | 66 |
|---|
| h2 | 30 |
|---|
| h3 | 16 |
|---|
| Form EP | 196 |
|---|
| l2 ≈ | 45 |
|---|
| l4 ≈ max. | 54 |
|---|
| m1 | 27 |
|---|
| m2 | 11,2 |
|---|
| m3 | 12,5 |
|---|
| m4 | 29 |
|---|
| m5 | 8 |
|---|
| m6 | 19 |
|---|
| s1 | 5 |
|---|
| s2 | 5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,650 kg |
|---|

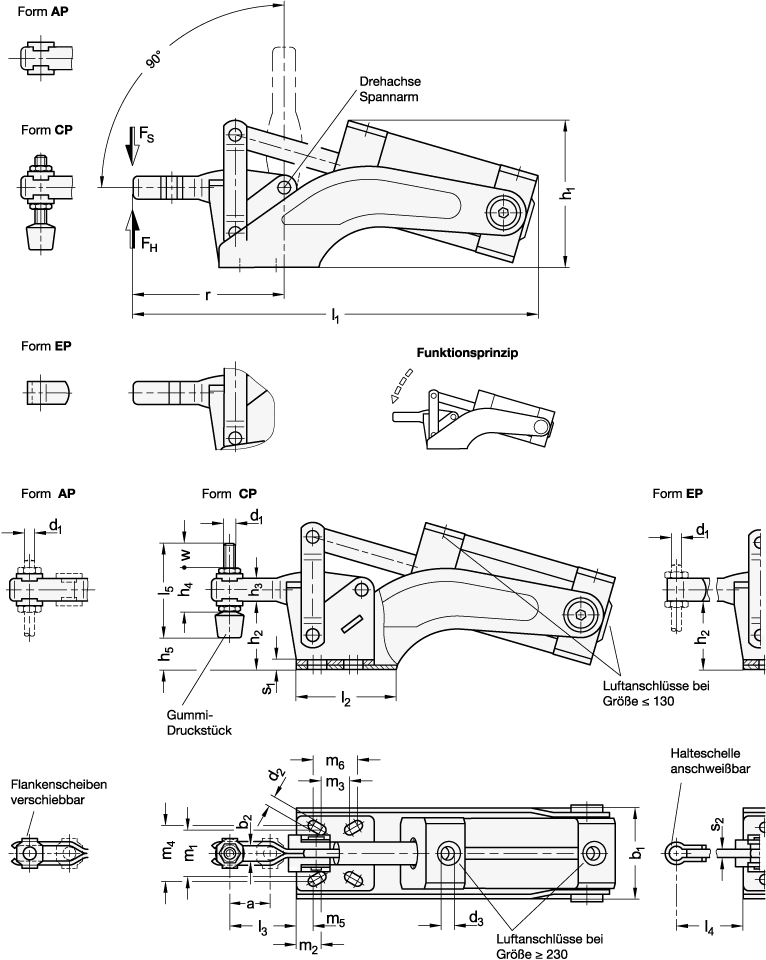

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 860 |
|---|
| Order designation | GN 860-130-EP-M |
|---|
| EAN | 4045525746916 |
|---|
| Manufacturer designation (German) | Schnellspanner, Stahl, pneumatisch |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
