Technical data (manufacturer information, German terms)
| Größe | 230 |
|---|
| Form | CP - offener Spannarm, mit 2 Flankenscheiben und Andrückschraube GN 708.1 |
|---|
| Kennzeichen | M - Magnetkolben |
|---|
| Werkstoff | C 10 - Einsatzstahl C 10 |
|---|
| FH in N Haltekraft | 2200 |
|---|
| FS in N Spannkraft bei 6 bar ≈ | 1200 |
|---|
| a ≈ | 40 |
|---|
| b1 | 52 |
|---|
| b2 | 8,2 |
|---|
| d1 | M 8 |
|---|
| d2 | 6,7 |
|---|
| d3 Druckluftanschlüsse | G 1/8 |
|---|
| Innen-Ø Anschlussschlauch | 4 |
|---|
| h1 ≈ | 78 |
|---|
| h2 | 36 |
|---|
| h3 | 18 |
|---|
| h4 | 30 |
|---|
| h5 | 12,5 |
|---|
| l1 ≈ Form AP Form CP | 259 |
|---|
| l2 ≈ | 55 |
|---|
| l3 ≈ | 57,5 |
|---|
| l5 | 68 |
|---|
| m1 | 32 |
|---|
| m2 | 12 |
|---|
| m3 | 18,5 |
|---|
| m4 | 32 |
|---|
| m5 | 11,5 |
|---|
| m6 | 20,5 |
|---|
| r ≈ Form AP Form CP | 104 |
|---|
| s1 | 6 |
|---|
| w Verstellweg | 20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,179 kg |
|---|

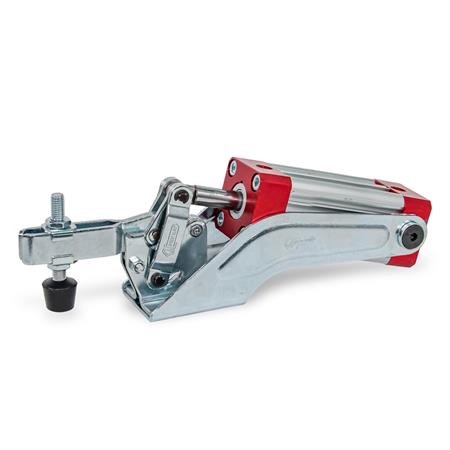

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 860 |
|---|
| Order designation | GN 860-230-CP-M |
|---|
| EAN | 4045525743908 |
|---|
| Manufacturer designation (German) | Schnellspanner, Stahl, pneumatisch |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
