Technical data (manufacturer information, German terms)
| Größe | 32 |
|---|
| d1 | 16 |
|---|
| Form | F - Adapterflansch |
|---|
| Kennzeichen | R - rechtsschwenkend |
|---|
| Werkstoff | AL - Aluminium |
|---|
| FS in N Spannkraft bei 6 bar | 270 |
|---|
| b2 | 45 |
|---|
| b5 | 30 |
|---|
| d2 Druckluftanschlüsse | G 1/8 |
|---|
| Gewinde | M 8 |
|---|
| h1 | 90 |
|---|
| h2 ≈ gespannt | 95 |
|---|
| Form F | 154 |
|---|
| l1 | 20 |
|---|
| m3 | 45 |
|---|
| w1 Spannhub | 14 |
|---|
| Hub | 30 |
|---|
| max. Anzugsdrehmoment des Spannarms in Nm | 18 |
|---|
| d6 | M 8 |
|---|
| d8 | 6 |
|---|
| l3 | 18 |
|---|
| l4 | 18 |
|---|
| l5 | 40 |
|---|
| l6 | 55 |
|---|
| m4 | 45 |
|---|
| m5 | 51 |
|---|
| m6 | 30 |
|---|
| m7 | 30 |
|---|
| t2 | 20 |
|---|
| t3 | 15 |
|---|
| t4 | 15 |
|---|
| t5 ≈ | 6 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,670 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 875 |
|---|
| Order designation | GN 875-32-16-R-F |
|---|
| EAN | 4045525525672 |
|---|

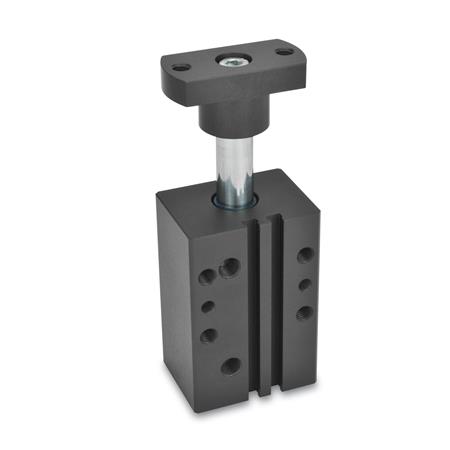

| Manufacturer designation (German) | Schwenkspanner, in Blockbauweise |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84679200 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
