Technical data (manufacturer information, German terms)
| Größe | 700 |
|---|
| Form | T4 - mit Zugbügel, mit Gegenhalter |
|---|
| Werkstoff | C 10 - Einsatzstahl C 10 |
|---|
| FH in N Haltekraft | 7500 |
|---|
| a | 13 |
|---|
| b1 | 52 |
|---|
| b2 | 54 |
|---|
| b3 | 38 |
|---|
| b4 | 48,5 |
|---|
| b5 | 26 |
|---|
| d1 | M 8 |
|---|
| d2 | 8,5 |
|---|
| h1 ≈ | 82 |
|---|
| h2 | 23 |
|---|
| l1 ≈ | 225 |
|---|
| l2 min. | 8 |
|---|
| m1 | 36,5 |
|---|
| m2 | 10 |
|---|
| m3 | 32 |
|---|
| m4 | 13,5 |
|---|
| m5 | 27 |
|---|
| r ≈ bei w2 = 0 | 102 |
|---|
| s | 3,5 |
|---|
| w1 Hub | 64 |
|---|
| w2 ≈ Verstellweg | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,675 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 851.2 |
|---|
| Order designation | GN 851.2-700-T4 |
|---|
| EAN | 4045525387089 |
|---|

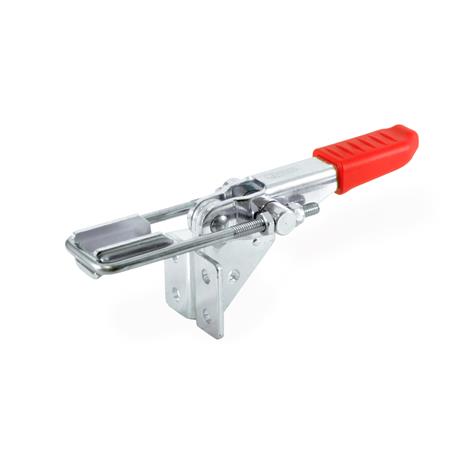

| Manufacturer designation (German) | Verschlussspanner für Zugspannung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
