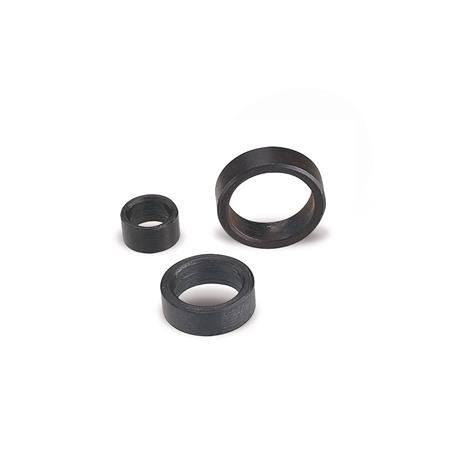

Zentrierbuchsen GN 870 – Ganter GN 870-11
Dimensional drawing Ganter GN 870-11
Preview: Zentrierbuchsen GN 870 – Ganter GN 870-11
Preview: Dimensional drawing Ganter GN 870-11
Zentrierbuchsen GN 870
Zentrierbuchsen GN 870 – Ganter GN 870-11
Dimensional drawing Ganter GN 870-11
Mobile Preview: Zentrierbuchsen GN 870 – Ganter GN 870-11
Mobile Preview: Dimensional drawing Ganter GN 870-11

Zentrierbuchsen GN 870

Product No.:
870-11
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Durchmesser d111
    WerkstoffST - Stahl
    d28,1
    Länge l4
    RoHSJa
    Gewicht0,001 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 870
    Order designationGN 870-11
    EAN4045525472891
    Manufacturer designation (German)Zentrierbuchsen für Kraftspanner
    Order unitPiece
    Customs tariff number84679200
    eCl@ss 5.1.421029111
