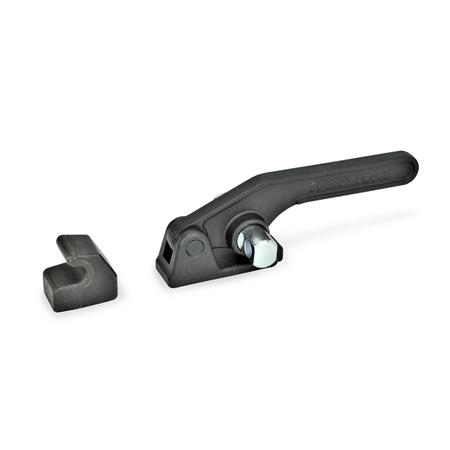

Technical data (manufacturer information, German terms)
| Größe | 1700 |
|---|
| Form | TS - zum Anschweißen, ohne Zugbügel, mit Gegenhalter |
|---|
| Werkstoff | ST - Stahl |
|---|
| FH in N Haltekraft | 17000 |
|---|
| a1 | 22 |
|---|
| a2 | 21 |
|---|
| b1 | 68 |
|---|
| b2 | 64 |
|---|
| b3 | 46 |
|---|
| b4 | 48 |
|---|
| b5 | 68 |
|---|
| b6 | 26,5 |
|---|
| b7 | 38 |
|---|
| b8 | 28 |
|---|
| b9 | 6 |
|---|
| d1 | M 10 |
|---|
| d2 | 8,5 |
|---|
| d3 | 14 |
|---|
| h1 ≈ | 55 |
|---|
| h2 | 34,5 |
|---|
| l1 ≈ Form T2S / TS | 218 |
|---|
| Form T / T2 | 223 |
|---|
| l2 min. | 33 |
|---|
| l3 ≈ | 129 |
|---|
| m1 | 45 |
|---|
| m2 | 11,5 |
|---|
| m3 | 45 |
|---|
| m4 | 10 |
|---|
| m5 | 28 |
|---|
| r ≈ bei w2 = 0 | 96 |
|---|
| s | 7 |
|---|
| t | 2 |
|---|
| w1 Hub | 54 |
|---|
| w2 ≈ Verstellweg | 15 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,750 kg |
|---|

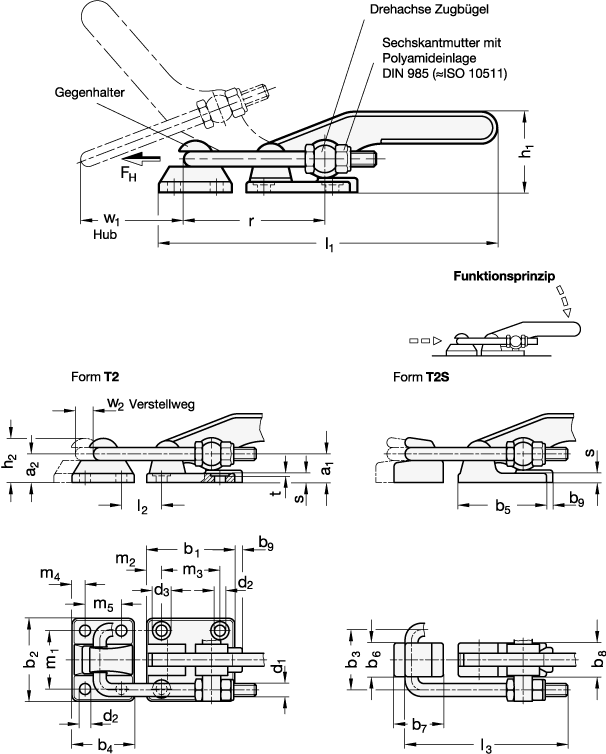

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 852 |
|---|
| Order designation | GN 852-1700-TS |
|---|
| EAN | 4045525425408 |
|---|
| Manufacturer designation (German) | Verschlussspanner, schwere Ausführung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
