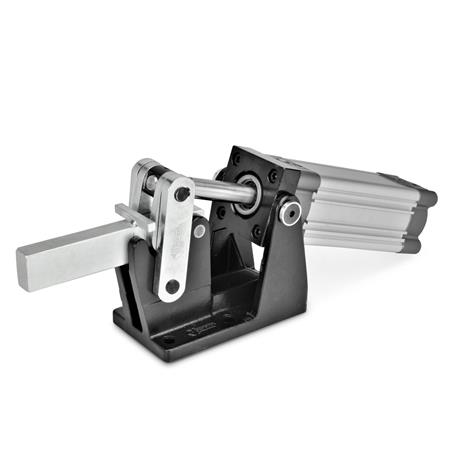

Technical data (manufacturer information, German terms)
| Größe | 2000 |
|---|
| Form | EP - massiver Spannarm, mit Halteschelle zum Anschweißen |
|---|
| Kennzeichen | M - Magnetkolben |
|---|
| Werkstoff | GS - Stahlguss |
|---|
| FH in N Haltekraft | 20000 |
|---|
| FS in N Spannkraft bei 6 bar ≈ | 3600 |
|---|
| b1 | 112 |
|---|
| b2 | 100 |
|---|
| b3 | 20 |
|---|
| d1 | 10,5 |
|---|
| d2 | G 3/8 |
|---|
| Innen-Ø Anschlussschlauch | 10 |
|---|
| h1 ≈ | 171,5 |
|---|
| h2 | 90 |
|---|
| h3 | 35 |
|---|
| l1 ≈ | 487 |
|---|
| l2 ≈ | 113 |
|---|
| l3 ≈ | 176 |
|---|
| m1 | 70 |
|---|
| m2 | 15 |
|---|
| m3 | 70 |
|---|
| m4 | 56 |
|---|
| r ≈ | 172 |
|---|
| s | 13 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 9,000 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 861 |
|---|
| Order designation | GN 861-2000-EP-M |
|---|
| EAN | 4045525387676 |
|---|
| Manufacturer designation (German) | Schnellspanner, Stahl, pneumatisch, schwere Ausführung, mit Magnetkolben |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
