Technical data (manufacturer information, German terms)
| Größe | 1400 |
|---|
| Form | TS - zum Anschweißen, ohne Zugbügel, mit Gegenhalter |
|---|
| Werkstoff | ST - Stahl |
|---|
| FH in N Haltekraft | 12000 |
|---|
| a1 | 15 |
|---|
| a2 | 29 |
|---|
| b1 | 61 |
|---|
| b2 | 61 |
|---|
| b3 | 46 |
|---|
| b4 | 26 |
|---|
| b5 | 64 |
|---|
| b6 | 42 |
|---|
| b7 | 26 |
|---|
| d1 | M 10 |
|---|
| d2 | 8,5 |
|---|
| d3 | 32,5 |
|---|
| h1 ≈ | 64 |
|---|
| h2 | 24 |
|---|
| l1 ≈ | 171 |
|---|
| l2 min. | 42 |
|---|
| m1 | 38 |
|---|
| m2 | 14,5 |
|---|
| m3 | 32 |
|---|
| m4 | 12,5 |
|---|
| m5 | 17 |
|---|
| r ≈ bei w2 = 0 | 109 |
|---|
| s | 8 |
|---|
| w1 Hub | 50 |
|---|
| w2 ≈ Verstellweg | 22 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,838 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data

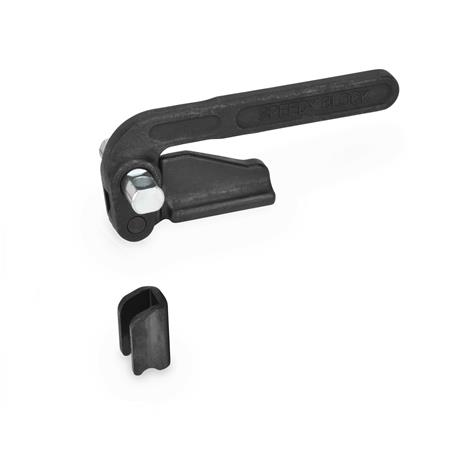

| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 852.1 |
|---|
| Order designation | GN 852.1-1400-TS |
|---|
| EAN | 4045525082182 |
|---|
| Manufacturer designation (German) | Verschlussspanner, schwere Ausführung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
