Technical data (manufacturer information, German terms)
| Größe | 330 |
|---|
| Form | BC - offener Spannarm, mit 2 Flankenscheiben und Andrückschraube GN 708.1 |
|---|
| Werkstoff | C 10 - Einsatzstahl C 10 |
|---|
| FH in N Haltekraft | 2400 |
|---|
| a ≈ | 43 |
|---|
| b1 | 50 |
|---|
| b2 | 14 |
|---|
| b3 | 7 |
|---|
| b4 | 10,5 |
|---|
| d1 | M 10 |
|---|
| d2 ≈ | 8,5 |
|---|
| h1 ≈ | 218 |
|---|
| h2 | 66 |
|---|
| h3 | 22 |
|---|
| h4 | 37 |
|---|
| h5 max. | 39,5 |
|---|
| l1 ≈ Form B Form BC | 129 |
|---|
| Form F | 130,5 |
|---|
| l2 ≈ | 66 |
|---|
| l4 | 77 |
|---|
| m1 | 28,7 |
|---|
| m2 | 32,3 |
|---|
| m3 | 10 |
|---|
| m4 | 9,5 |
|---|
| r ≈ | 122 |
|---|
| w Verstellweg | 19 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,650 kg |
|---|

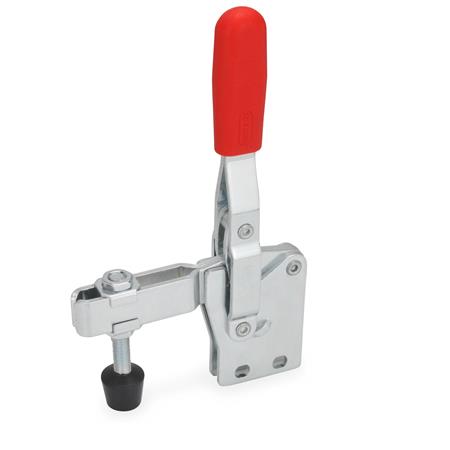

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 810.1 |
|---|
| Order designation | GN 810.1-330-BC |
|---|
| EAN | 4045525126107 |
|---|
| Manufacturer designation (German) | Schnellspanner, Stahl, Spannhebel vertikal, mit senkrechtem Fuß |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
