Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Größe | 230 |
|---|
| Form | C - offener Spannarm, mit 2 Flankenscheiben und Andrückschraube GN 708.1 |
|---|
| FH in N Haltekraft | 2000 |
|---|
| a ≈ | 40 |
|---|
| b1 | 43 |
|---|
| b2 | 45 |
|---|
| b3 | 8,5 |
|---|
| d1 | M 8 |
|---|
| d2 ≈ | 6,5 |
|---|
| h1 ≈ | 168 |
|---|
| h2 | 33,5 |
|---|
| h3 | 18 |
|---|
| h4 | 30 |
|---|
| h5 | 9,5 |
|---|
| l1 ≈ Form A Form C | 110,5 |
|---|
| Form E | 112 |
|---|
| l2 ≈ | 58 |
|---|
| l4 | 68 |
|---|
| m1 | 19 |
|---|
| m2 | 20 |
|---|
| m3 | 32 |
|---|
| m4 | 32 |
|---|
| r ≈ | 104 |
|---|
| s1 | 3 |
|---|
| w Verstellweg | 20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,400 kg |
|---|

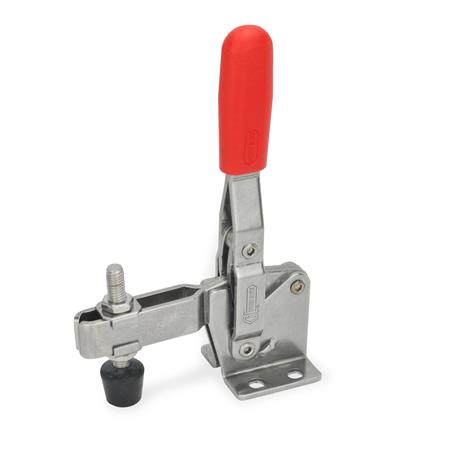

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 810 |
|---|
| Order designation | GN 810-230-C-NI |
|---|
| EAN | 4045525126589 |
|---|
| Manufacturer designation (German) | Schnellspanner, Edelstahl, Spannhebel vertikal, mit waagrechtem Fuß |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
