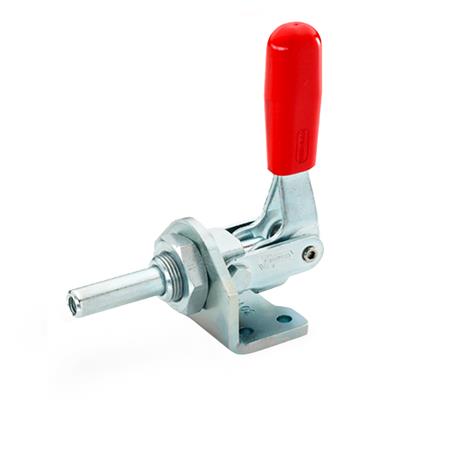

Technical data (manufacturer information, German terms)
| Größe | 80 |
|---|
| Form | ASW - mit Befestigungswinkel |
|---|
| Werkstoff | ST - Stahl |
|---|
| FH in N Haltekraft | 3000 |
|---|
| a | 24 |
|---|
| b1 | 35 |
|---|
| b2 | 30 |
|---|
| d1 | 10 |
|---|
| d2 | M 6 |
|---|
| d3 | M 16 x 1,5 |
|---|
| d4 | 5,5 |
|---|
| h1 ≈ | 70,5 |
|---|
| h2 | 38,5 |
|---|
| h3 | 19 |
|---|
| l1 ≈ | 71 |
|---|
| l2 ≈ | 65 |
|---|
| l3 ≈ | 34 |
|---|
| l4 ≈ | 22 |
|---|
| l5 | 22 |
|---|
| m1 | 20 |
|---|
| m2 | 12 |
|---|
| s | 4 |
|---|
| t | 12 |
|---|
| w Hub | 21 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,178 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 843.1 |
|---|
| Order designation | GN 843.1-80-ASW |
|---|
| EAN | 4045525519503 |
|---|
| Manufacturer designation (German) | Schubstangenspanner, Stahl |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
