Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Größe | 75 |
|---|
| Form | P - massiver Spannarm mit Halteschelle zum Anschweißen |
|---|
| FH in N Haltekraft | 900 |
|---|
| b1 | 28 |
|---|
| b2 | 8 |
|---|
| b3 | 4 |
|---|
| d1 | M 5 |
|---|
| d2 | 4,5 |
|---|
| h1 | 45,5 |
|---|
| h2 | 27,5 |
|---|
| h3 | 11 |
|---|
| l1 ≈ | 118 |
|---|
| l2 ≈ | 68 |
|---|
| l4 max. | 49,5 |
|---|
| m1 | 13,5 |
|---|
| m2 | 3,5 |
|---|
| m3 | 5 |
|---|
| r ≈ | 43 |
|---|
| s | 4 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,090 kg |
|---|

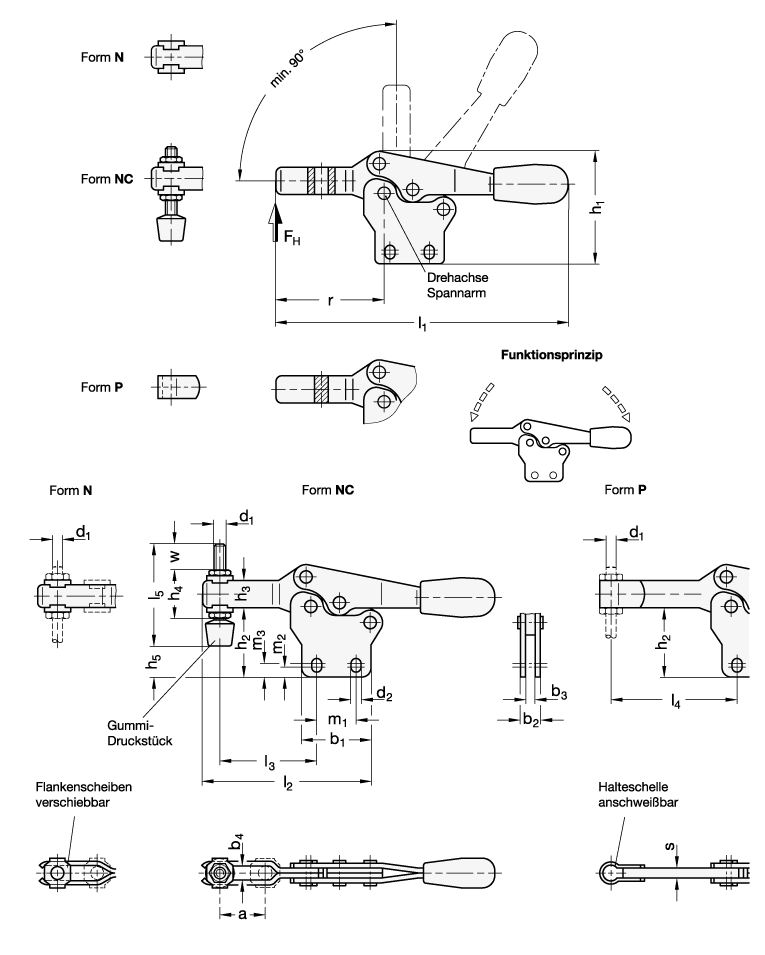

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 820.1 |
|---|
| Order designation | GN 820.1-75-P-NI |
|---|
| EAN | 4045525385924 |
|---|

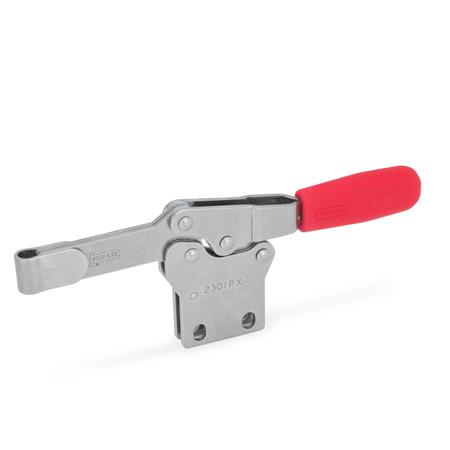

| Manufacturer designation (German) | Schnellspanner, Edelstahl, Spannhebel horizontal, mit senkrechtem Fuß |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
