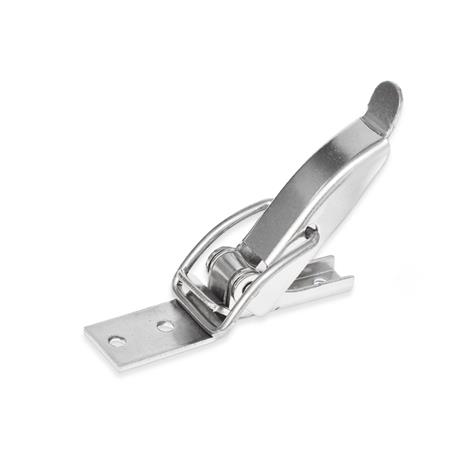

Spannverschlüsse GN 832.3, Edelstahl – Ganter GN 832.3-100-NI
Dimensional drawing Ganter GN 832.3-100-NI
Preview: Spannverschlüsse GN 832.3, Edelstahl – Ganter GN 832.3-100-NI
Preview: Dimensional drawing Ganter GN 832.3-100-NI
Spannverschlüsse GN 832.3, Edelstahl
Spannverschlüsse GN 832.3, Edelstahl – Ganter GN 832.3-100-NI
Dimensional drawing Ganter GN 832.3-100-NI
Mobile Preview: Spannverschlüsse GN 832.3, Edelstahl – Ganter GN 832.3-100-NI
Mobile Preview: Dimensional drawing Ganter GN 832.3-100-NI

Spannverschlüsse GN 832.3, Edelstahl

Product No.:
832.3-100-NI
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffNI - Edelstahl
    Größe100
    Haltekraft1000
    b128
    b215
    b312
    b441
    b519
    b636
    d13
    d24,3
    h117
    h213
    l1 ≈114
    l272
    l3 ≈40
    m17
    m215,5
    m35
    m415
    r ≈37
    RoHSJa
    Gewicht0,060 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 832.3
    Order designationGN 832.3-100-NI
    EAN4045525452510
    Manufacturer designation (German)Spannverschlüsse, Stahl / Edelstahl
    Order unitPiece
    Customs tariff number83089000
    eCl@ss 5.1.421020701
