Technical data (manufacturer information, German terms)
| Größe | 330 |
|---|
| Form | CPVS - offener Spannarm, mit 2 Flankenscheiben und Andrückschraube GN 708.1 |
|---|
| Kennzeichen | M - Magnetkolben |
|---|
| Werkstoff | C 10 - Einsatzstahl C 10 |
|---|
| FH in N Haltekraft | 2600 |
|---|
| FS in N Spannkraft bei 6 bar ≈ | 1800 |
|---|
| a | 45 |
|---|
| b1 | 70 |
|---|
| b2 | 52,5 |
|---|
| b3 | 56 |
|---|
| b4 | 79 |
|---|
| b5 | 10,5 |
|---|
| d1 | M 10 |
|---|
| d2 | 8,5 |
|---|
| d3 Druckluftanschlüsse | G 1/4 |
|---|
| Innen-Ø Anschlussschlauch | 6 |
|---|
| e | 52,5 |
|---|
| h1 | 363 |
|---|
| h2 | 108 |
|---|
| h3 | 22 |
|---|
| h4 ≈ | 37 |
|---|
| h5 | 80 |
|---|
| l1 ≈ Form APVS Form CPVS | 182 |
|---|
| l2 ≈ | 72 |
|---|
| l4 | 77 |
|---|
| m1 | 30 |
|---|
| m2 | 16 |
|---|
| m3 | 28 |
|---|
| m4 | 19 |
|---|
| m5 | 30 |
|---|
| m6 | 20 |
|---|
| r ≈ Form APVS Form CPVS | 121 |
|---|
| Form EPVS | 123 |
|---|
| s1 | 3,5 |
|---|
| s2 | 6,5 |
|---|
| w Verstellweg | 19 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 2,355 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 862.1 |
|---|
| Order designation | GN 862.1-330-CPVS-M |
|---|
| EAN | 4045525745803 |
|---|

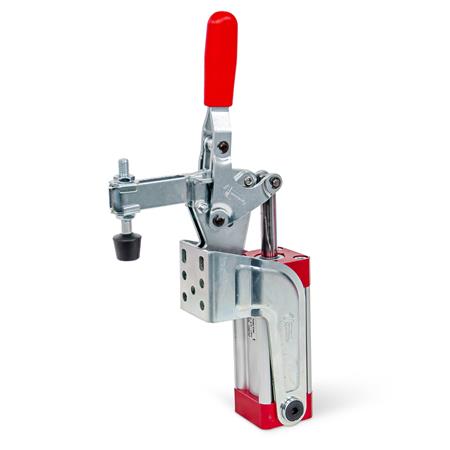

| Manufacturer designation (German) | Schnellspanner, Stahl, pneumatisch, mit zusätzlicher Handbetätigung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
