Technical data (manufacturer information, German terms)
| Werkstoff | AL - Aluminium |
|---|
| d1 | 12 |
|---|
| m | 30 |
|---|
| Oberfläche | HE - harteloxiert |
|---|
| für Schwenkspanner Größe | 20 |
|---|
| b | 18 |
|---|
| d2 | M 6 |
|---|
| d3 | 18 |
|---|
| d4 | 8,5 |
|---|
| d5 | 40 |
|---|
| h1 | 20 |
|---|
| h2 | 5,5 |
|---|
| h3 | 10 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,031 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 875.4 |
|---|
| Order designation | GN 875.4-AL-12-30-HE |
|---|
| EAN | 4045525795914 |
|---|

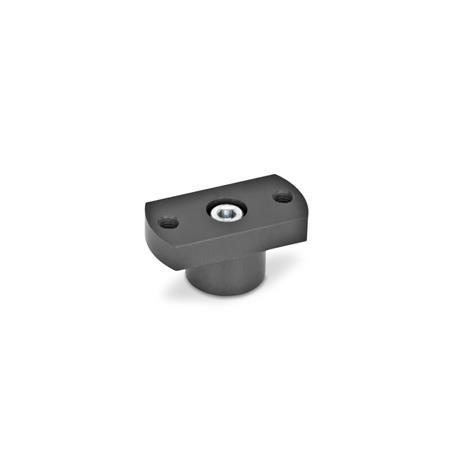

| Manufacturer designation (German) | Adapterflansche, für Schwenkspanner GN 875 / GN 876 |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76169990 |
|---|
| eCl@ss 5.1.4 | 21021090 |
|---|
