Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Größe | 4000 |
|---|
| Form | TS - zum Anschweißen, ohne Zugbügel, mit Gegenhalter |
|---|
| FH in N Haltekraft | 30000 |
|---|
| a1 | 28 |
|---|
| a2 | 27 |
|---|
| b1 | 85 |
|---|
| b2 | 80 |
|---|
| b3 | 55 |
|---|
| b4 | 60 |
|---|
| b5 | 80 |
|---|
| b6 | 32 |
|---|
| b7 | 50 |
|---|
| b8 | 32 |
|---|
| b9 | 6 |
|---|
| d1 | M 12 |
|---|
| d2 | 10,5 |
|---|
| d3 | 16 |
|---|
| h1 ≈ | 68 |
|---|
| h2 | 42,5 |
|---|
| l1 ≈ Form T2S / TS | 265 |
|---|
| Form T / T2 | 271 |
|---|
| l2 min. | 30 |
|---|
| l3 ≈ | 151 |
|---|
| m1 | 57 |
|---|
| m2 | 14 |
|---|
| m3 | 57 |
|---|
| m4 | 12,5 |
|---|
| m5 | 35 |
|---|
| r ≈ bei w2 = 0 | 107 |
|---|
| s | 9 |
|---|
| t | 2 |
|---|
| w1 Hub | 62 |
|---|
| w2 ≈ Verstellweg | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,420 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 852 |
|---|

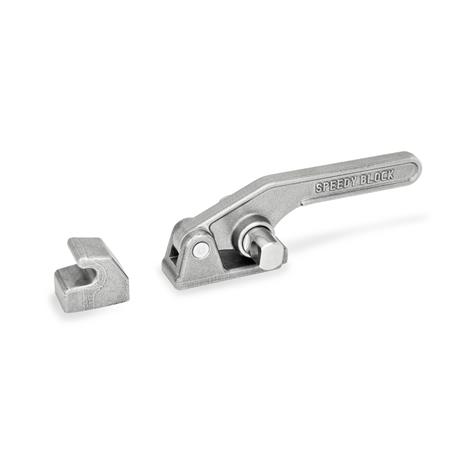

| Order designation | GN 852-4000-TS-NI |
|---|
| EAN | 4045525480056 |
|---|
| Manufacturer designation (German) | Edelstahl-Verschlussspanner, schwere Ausführung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
