Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Größe | 100 |
|---|
| Form | A - ohne Sicherung |
|---|
| Kennziffer | 1 - lange Ausführung |
|---|
| Haltekraft | 1000 |
|---|
| b1 | 25,5 |
|---|
| b2 | 22 |
|---|
| b3 | 26 |
|---|
| b4 | 14 |
|---|
| d | 4,2 |
|---|
| h1 | 18,5 |
|---|
| h2 | 8,5 |
|---|
| h3 | 21,5 |
|---|
| h4 | 25,5 |
|---|
| l1 min. Kennziffer 1 Form A Form SV | 67 |
|---|
| Form S | 74 |
|---|
| l2 min. Kennziffer 1 Form A Form SV | 56 |
|---|
| l3 | 19,5 |
|---|
| l4 min. Kennziffer 2 Form A Form SV | 31 |
|---|
| l5 min. Kennziffer 2 Form A Form SV | 54 |
|---|
| m1 | 14,3 |
|---|
| m2 | 7 |
|---|
| m3 | 4 |
|---|
| m4 | 8 |
|---|
| r | 51 |
|---|
| w1 ≈ Hub | 5,5 |
|---|
| w2 ≈ Verstellweg Form A Form SV | 12 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,052 kg |
|---|

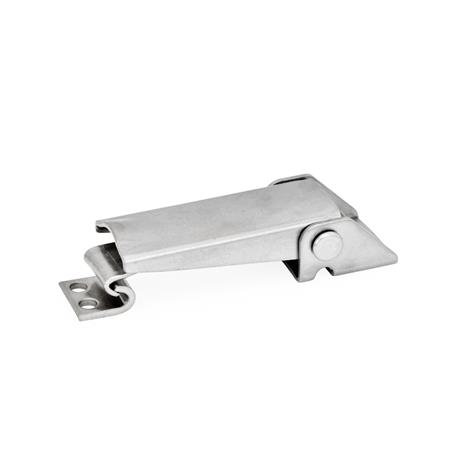

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 831 |
|---|
| Order designation | GN 831-100-A-NI-1 |
|---|
| EAN | 4045525386266 |
|---|
| Manufacturer designation (German) | Spannverschlüsse, Stahl, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83089000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
