Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Größe | 75 |
|---|
| Form | E - massiver Spannarm mit Halteschelle zum Anschweißen |
|---|
| FH in N Haltekraft | 750 |
|---|
| b1 | 29 |
|---|
| b2 | 34 |
|---|
| d1 | M 5 |
|---|
| d2 ≈ | 4,5 |
|---|
| h1 ≈ | 98 |
|---|
| h2 | 20,5 |
|---|
| h3 | 11 |
|---|
| l1 ≈ Form A Form C | 66,5 |
|---|
| Form E | 67 |
|---|
| l3 max. | 41 |
|---|
| m1 | 15 |
|---|
| m2 | 16 |
|---|
| m3 | 24 |
|---|
| m4 | 24 |
|---|
| r ≈ | 62,5 |
|---|
| s1 | 2 |
|---|
| s2 | 4 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,090 kg |
|---|

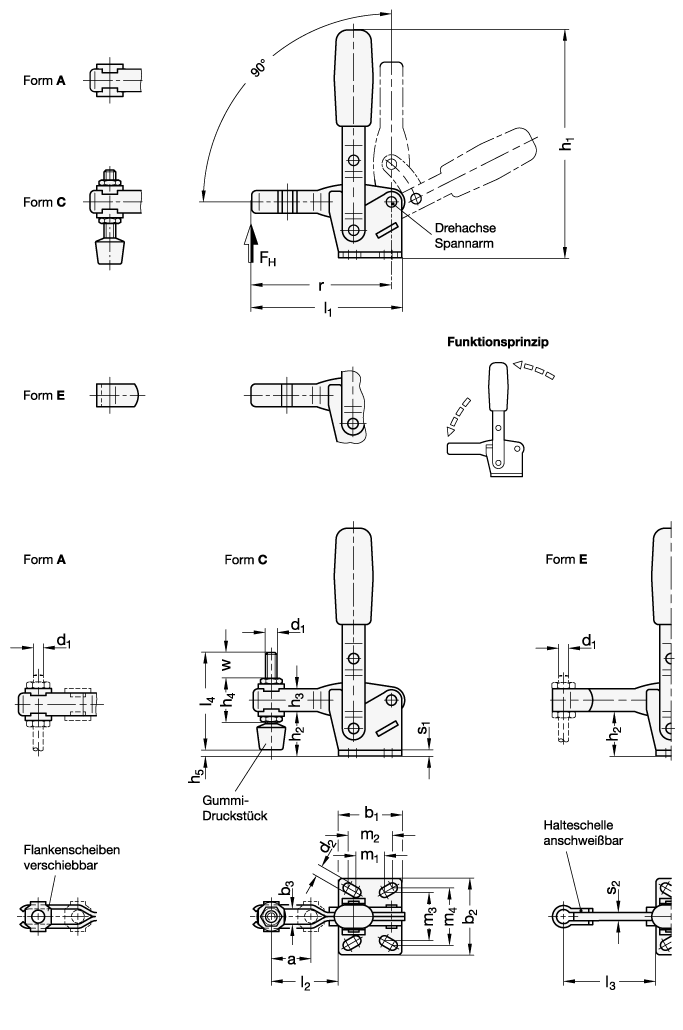

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

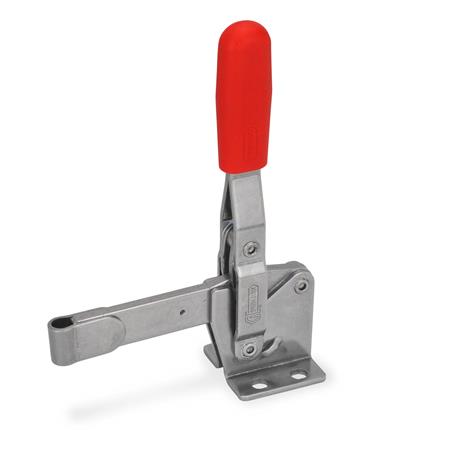

Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 810 |
|---|
| Order designation | GN 810-75-E-NI |
|---|
| EAN | 4045525897472 |
|---|
| Manufacturer designation (German) | Schnellspanner, Edelstahl, Spannhebel vertikal, mit waagrechtem Fuß |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
