Technical data (manufacturer information, German terms)
| Größe | 1400 |
|---|
| Form | T5 - mit Befestigungsbohrungen (d~2~) |
|---|
| Werkstoff | ST - Stahl |
|---|
| FH in N Haltekraft | 15000 |
|---|
| a | 22 |
|---|
| b1 | 115 |
|---|
| b2 | 51,5 |
|---|
| b3 | 66 |
|---|
| b4 | 22 |
|---|
| d1 | 10 |
|---|
| d2 | 8,5 |
|---|
| h1 | 57 |
|---|
| h2 | 38 |
|---|
| l1 ≈ | 318 |
|---|
| l2 ≈ min. | 47 |
|---|
| m1 | 21 |
|---|
| m2 | 95 |
|---|
| m3 | 11 |
|---|
| m4 | 44 |
|---|
| r ≈ bei w2=0 | 97,5 |
|---|
| s | 5 |
|---|
| w1 Hub | 24 |
|---|
| w2 Verstellweg | 22 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,500 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 858 |
|---|
| Order designation | GN 858-1400-T5 |
|---|
| EAN | 4045525701380 |
|---|

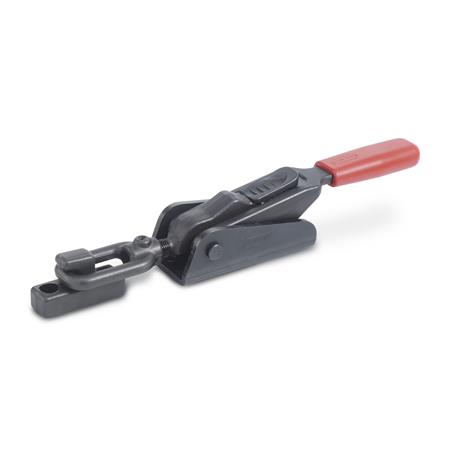

| Manufacturer designation (German) | Verschlussspanner mit Verriegelung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
