Technical data (manufacturer information, German terms)
| Größe | 355 |
|---|
| Form | NL - offener Spannarm, mit 2 Flankenscheiben |
|---|
| Werkstoff | C 10 - Einsatzstahl C 10 |
|---|
| FH in N Haltekraft | 1800 |
|---|
| a ≈ | 58 |
|---|
| b1 | 60 |
|---|
| b2 | 14 |
|---|
| b3 | 7 |
|---|
| b4 | 10,5 |
|---|
| d1 | M 10 |
|---|
| d2 | 8,6 |
|---|
| h1 ≈ | 102 |
|---|
| h2 | 69,5 |
|---|
| h3 | 22 |
|---|
| l1 ≈ | 270 |
|---|
| l2 ≈ | 160 |
|---|
| l3 ≈ | 98,5 |
|---|
| m1 | 41 |
|---|
| m2 | 7,5 |
|---|
| m3 | 9,6 |
|---|
| r ≈ | 109 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,730 kg |
|---|

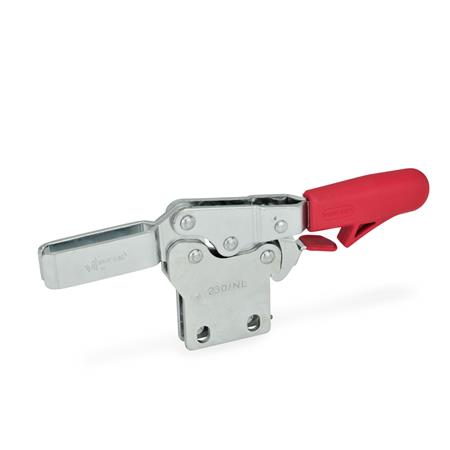

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 820.4 |
|---|
| Order designation | GN 820.4-355-NL |
|---|
| EAN | 4045525112254 |
|---|
| Manufacturer designation (German) | Schnellspanner, Stahl, Spannhebel horizontal, mit Verriegelung, mit senkrechtem Fuß |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
