Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Größe | 130 |
|---|
| Form | NLC - offener Spannarm, mit 2 Flankenscheiben und Andrückschraube GN 708.1 |
|---|
| FH in N Haltekraft | 1000 |
|---|
| a ≈ | 32 |
|---|
| b1 | 36 |
|---|
| b2 | 10 |
|---|
| b3 | 5 |
|---|
| b4 | 6,3 |
|---|
| d1 | M 6 |
|---|
| d2 | 5,6 |
|---|
| h1 ≈ | 64,5 |
|---|
| h2 | 44 |
|---|
| h3 | 16 |
|---|
| h4 | 25,5 |
|---|
| h5 max. | 27,5 |
|---|
| l1 ≈ | 172 |
|---|
| l2 ≈ | 92,5 |
|---|
| l3 ≈ | 54 |
|---|
| l5 | 55 |
|---|
| m1 | 26 |
|---|
| m2 | 5,8 |
|---|
| m3 | 8,8 |
|---|
| r ≈ | 62,5 |
|---|
| s | 5 |
|---|
| w Verstellweg | 17,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,216 kg |
|---|

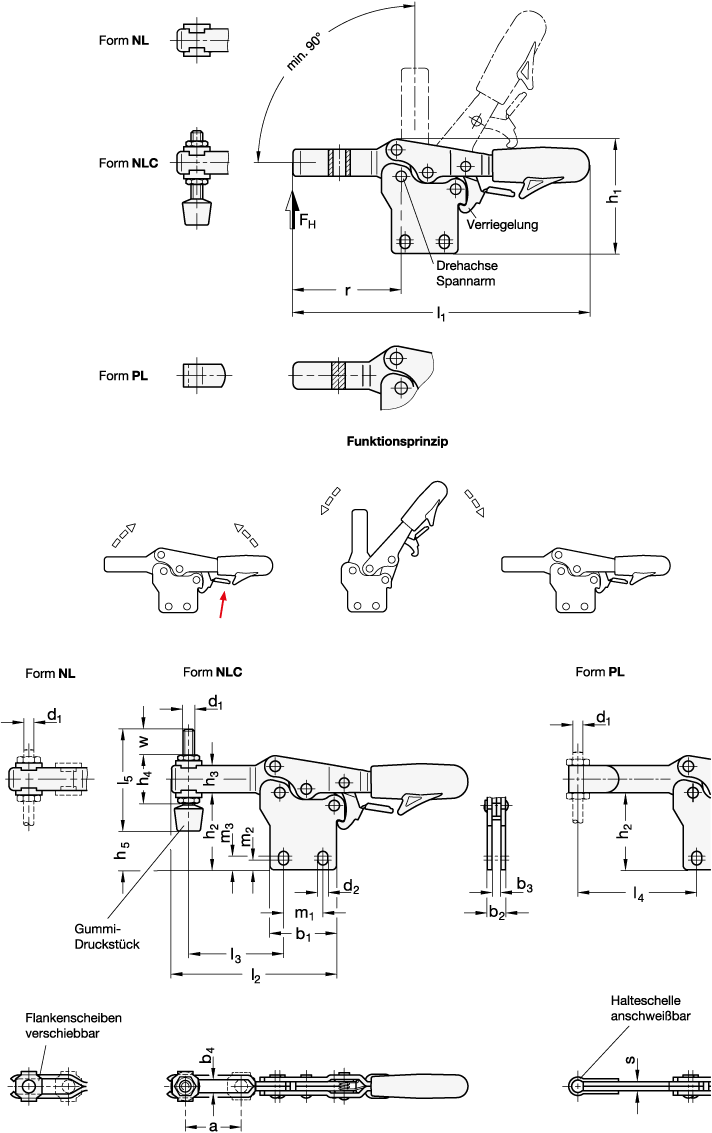

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 820.4 |
|---|
| Order designation | GN 820.4-130-NLC-NI |
|---|
| EAN | 4045525126695 |
|---|
| Manufacturer designation (German) | Schnellspanner, Edelstahl, Spannhebel horizontal, mit Verriegelung, mit senkrechtem Fuß |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
