Technical data (manufacturer information, German terms)
| Größe | 430 |
|---|
| Form | C - offener Spannarm, mit 2 Flankenscheiben und Andrückschraube GN 708.1 |
|---|
| Werkstoff | C 10 - Einsatzstahl C 10 |
|---|
| FH in N Haltekraft | 2800 |
|---|
| a ≈ | 64 |
|---|
| b1 | 58 |
|---|
| b2 | 65 |
|---|
| b3 | 12,5 |
|---|
| d1 | M 12 |
|---|
| d2 ≈ | 8,5 |
|---|
| h1 ≈ | 247 |
|---|
| h2 | 55,5 |
|---|
| h3 | 26 |
|---|
| h4 | 43 |
|---|
| h5 | 23 |
|---|
| l1 ≈ Form A Form C | 164 |
|---|
| Form E | 166 |
|---|
| l2 ≈ | 88 |
|---|
| l4 | 100 |
|---|
| m1 | 32 |
|---|
| m2 | 32 |
|---|
| m3 | 45 |
|---|
| m4 | 45 |
|---|
| r ≈ | 156 |
|---|
| s1 | 4 |
|---|
| w Verstellweg | 33 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,060 kg |
|---|

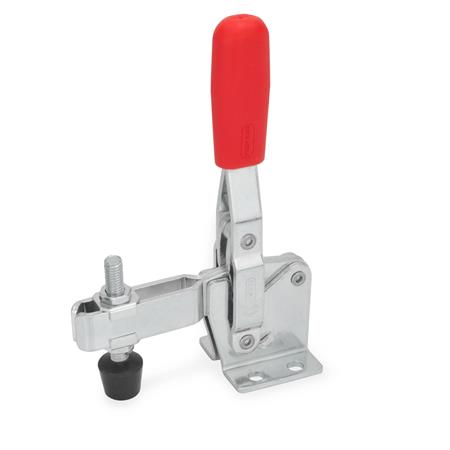

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 810 |
|---|
| Order designation | GN 810-430-C |
|---|
| EAN | 4045525126152 |
|---|
| Manufacturer designation (German) | Schnellspanner, Stahl, Spannhebel vertikal, mit waagrechtem Fuß |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
