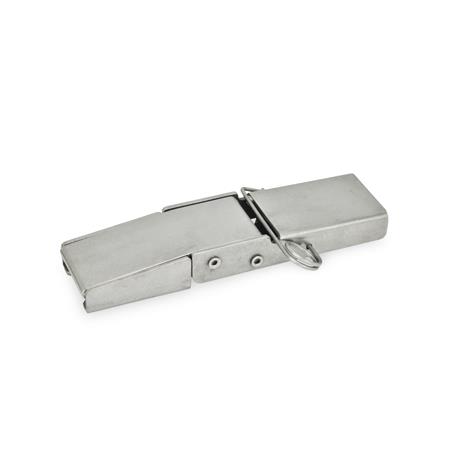

Spannverschlüsse GN 8330, Edelstahl – Ganter GN 8330-20-NI-B
Dimensional drawing Ganter GN 8330-20-NI-B
Preview: Spannverschlüsse GN 8330, Edelstahl – Ganter GN 8330-20-NI-B
Preview: Dimensional drawing Ganter GN 8330-20-NI-B
Spannverschlüsse GN 8330, Edelstahl
Spannverschlüsse GN 8330, Edelstahl – Ganter GN 8330-20-NI-B
Dimensional drawing Ganter GN 8330-20-NI-B
Mobile Preview: Spannverschlüsse GN 8330, Edelstahl – Ganter GN 8330-20-NI-B
Mobile Preview: Dimensional drawing Ganter GN 8330-20-NI-B

Spannverschlüsse GN 8330, Edelstahl

Product No.:
8330-20-NI-B
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffNI - Edelstahl
    Breite b120
    FormB - mit Federstecker
    Haltekraft300
    b213
    d13,4
    d21,8
    h10
    l1 ≈76
    l234
    l325
    l444
    m18
    m229
    m38
    m522
    m64
    w ≈9
    RoHSJa
    Gewicht0,037 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 8330
    Order designationGN 8330-20-NI-B
    EAN4045525965973
    Manufacturer designation (German)Spannverschlüsse, Edelstahl
    Order unitPiece
    Customs tariff number83089000
    eCl@ss 5.1.421020701
