Technical data (manufacturer information, German terms)
| Werkstoff | AL - Aluminium |
|---|
| d1 | 14 |
|---|
| m | 50 |
|---|
| Oberfläche | HE - harteloxiert |
|---|
| für Schwenkspanner Größe | 25 |
|---|
| a | 20 |
|---|
| b1 | 6,5 |
|---|
| b2 | 11,3 |
|---|
| b3 | 18 |
|---|
| d2 | M 6 |
|---|
| d3 | 8,5 |
|---|
| h1 | 16 |
|---|
| h2 | 6,5 |
|---|
| Länge l | 64,6 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,041 kg |
|---|

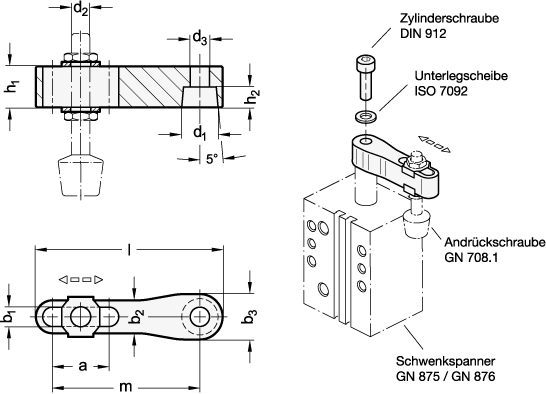

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 875.2 |
|---|
| Order designation | GN 875.2-AL-14-50-HE |
|---|
| EAN | 4045525535367 |
|---|
| Manufacturer designation (German) | Spannarme mit Langloch, für Schwenkspanner GN 875 / GN 876 |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76169990 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
