Technical data (manufacturer information, German terms)
| Größe | 220 |
|---|
| Form | CPV - Spannarm mit Langloch, mit 2 Flankenscheiben und Andrückschraube GN 708.1 |
|---|
| Kennzeichen | M - Magnetkolben |
|---|
| Werkstoff | ST - Stahl |
|---|
| FH in N Haltekraft | 2200 |
|---|
| FS in N Spannkraft bei 6 bar ≈ | 870 |
|---|
| a ≈ | 35 |
|---|
| b1 ≈ | 62 |
|---|
| b2 | 48 |
|---|
| b3 | 36 |
|---|
| b4 | 6,3 |
|---|
| d1 | M 6 |
|---|
| d2 | 6,5 |
|---|
| d3 | G 1/8 |
|---|
| Innen-Ø Anschlussschlauch | 4 |
|---|
| e ≈ ≈ | 38,3 |
|---|
| h1 ≈ | 221 |
|---|
| h2 | 77 |
|---|
| h3 | 16,6 |
|---|
| h4 ≈ | 26 |
|---|
| h5 | 60,3 |
|---|
| l1 ≈ | 161 |
|---|
| l2 ≈ | 51 |
|---|
| l4 | 65 |
|---|
| m1 | 30 |
|---|
| m2 | 34 |
|---|
| m3 | 20 |
|---|
| r | 96 |
|---|
| s1 | 3,5 |
|---|
| w Verstellweg | 27 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,992 kg |
|---|

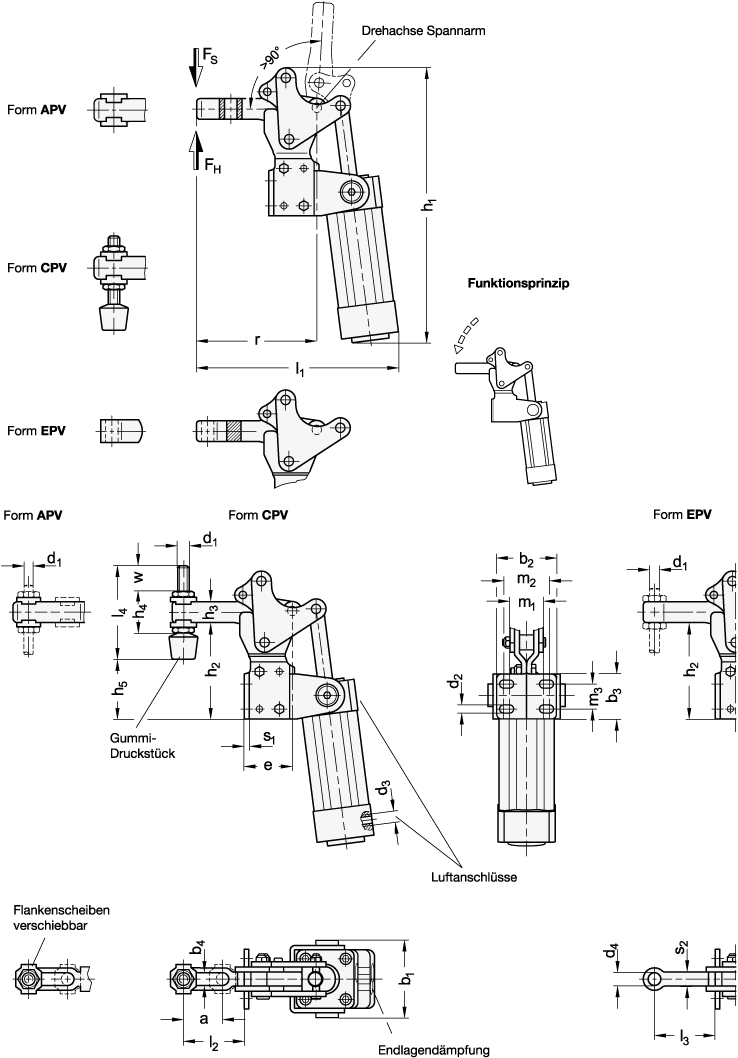

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 962 |
|---|

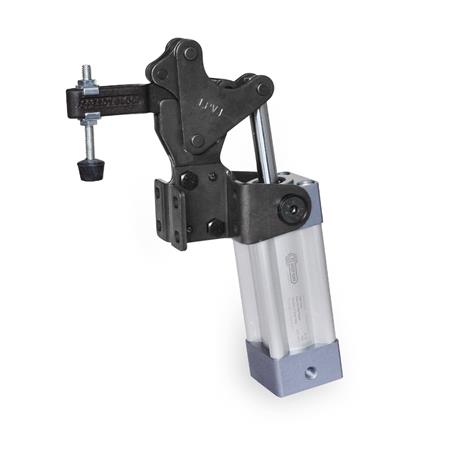

| Order designation | GN 962-220-CPV-M |
|---|
| EAN | 4045525534490 |
|---|
| Manufacturer designation (German) | Schnellspanner, pneumatisch, schwere Ausführung „Longlife“ |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
