Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Größe | 55 |
|---|
| Form | A - ohne Schlosslasche |
|---|
| Haltekraft | 550 |
|---|
| b1 | 23 |
|---|
| b2 | 15 |
|---|
| b3 | 41 |
|---|
| b4 | 18 |
|---|
| b5 | 36 |
|---|
| b6 | 13 |
|---|
| d1 | 2 |
|---|
| d2 | 3,5 |
|---|
| d3 | 4 |
|---|
| h1 | 12 |
|---|
| h2 | 11 |
|---|
| h3 | 9 |
|---|
| h4 | 19,5 |
|---|
| l1 ≈ | 52 |
|---|
| l2 | 34 |
|---|
| l3 ≈ | 29 |
|---|
| m1 | 4 |
|---|
| m2 | 33 |
|---|
| m3 | 4 |
|---|
| m4 | 28 |
|---|
| r ≈ | 21 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,021 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 832.2 |
|---|
| Order designation | GN 832.2-55-A-ST |
|---|
| EAN | 4045525452480 |
|---|

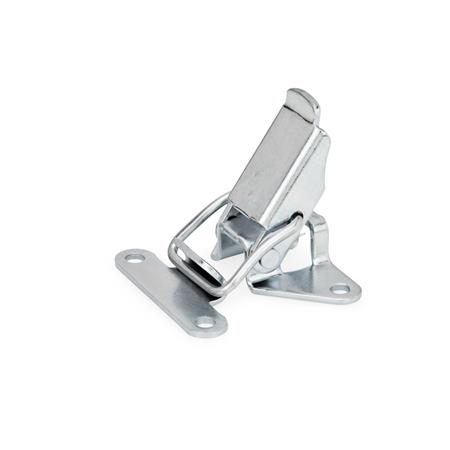

| Manufacturer designation (German) | Spannverschlüsse, Stahl / Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83089000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
