Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 14 |
|---|
| Vierkant s | 20 |
|---|
| Form | B - Riegelstellung parallel zu Befestigungsbohrungen |
|---|
| Oberfläche | ZB - verzinkt, blau passiviert |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 6,1 |
|---|
| h1 | 7,5 |
|---|
| h2 | 1,5 |
|---|
| l1 ≈ | 54 |
|---|
| l2 | 14 |
|---|
| l3 | 35 |
|---|
| l4 | 37 |
|---|
| l5 | 48 |
|---|
| m | 34 |
|---|
| sw | 10 |
|---|
| Federdruck in N ≈ Anfang | 14 |
|---|
| Ende | 35 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,175 kg |
|---|

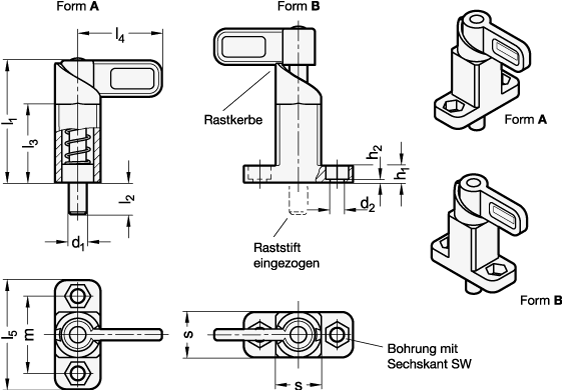

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 722.2 |
|---|
| Order designation | GN 722.2-14-20-B-ZB |
|---|
| EAN | 4045525699311 |
|---|

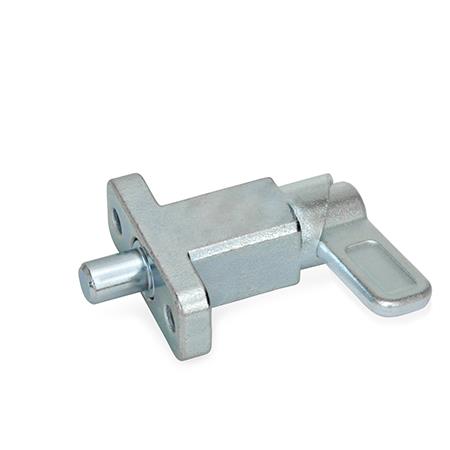

| Manufacturer designation (German) | Federriegel, Stahl, mit Anschraubflansch |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
