Technical data (manufacturer information, German terms)
| Gewinde (Form SS) d11 | M 6 |
|---|
| Form | SS - Bolzen Stahl, verstärkter Federdruck |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 2,7 |
|---|
| Länge l | 20 |
|---|
| w Federweg | 2,5 |
|---|
| verstärkt (Form SS) Anfang | 15 |
|---|
| Ende | 43 |
|---|
| Artikel-Nr. für Schraubendreher | 611.5-M6 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,003 kg |
|---|

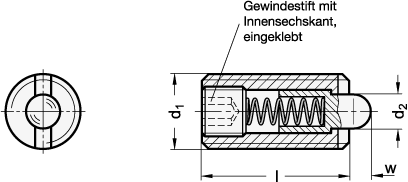

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 616 |
|---|
| Order designation | GN 616-M6-SS |
|---|
| EAN | 4045525314986 |
|---|
| Manufacturer designation (German) | Federnde Druckstücke, Gehäuse Stahl, Bolzen Stahl / Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 21130611 |
|---|
