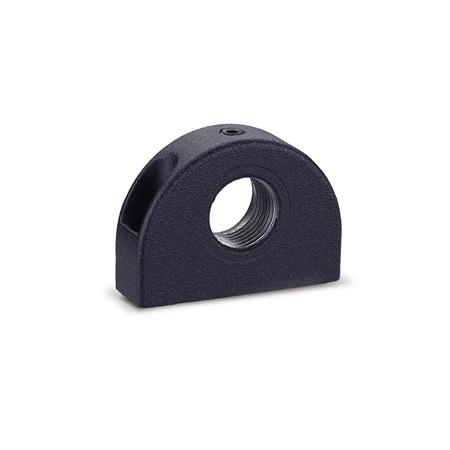

Haltestücke GN 412.1, Zink-Druckguss – Ganter GN 412.1-35-M10X1-1
Dimensional drawing Ganter GN 412.1-35-M10X1-1
Preview: Haltestücke GN 412.1, Zink-Druckguss – Ganter GN 412.1-35-M10X1-1
Preview: Dimensional drawing Ganter GN 412.1-35-M10X1-1
Haltestücke GN 412.1, Zink-Druckguss
Haltestücke GN 412.1, Zink-Druckguss – Ganter GN 412.1-35-M10X1-1
Dimensional drawing Ganter GN 412.1-35-M10X1-1
Mobile Preview: Haltestücke GN 412.1, Zink-Druckguss – Ganter GN 412.1-35-M10X1-1
Mobile Preview: Dimensional drawing Ganter GN 412.1-35-M10X1-1

Haltestücke GN 412.1, Zink-Druckguss

Product No.:
412.1-35-M10X1-1
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Länge b35
    Feingewinde d11M 10 x 1
    Kennziffer1 - Montage von vorne
    WerkstoffZD - Zink-Druckguss
    d24,3
    d3M 4
    d410,2
    h26
    k25
    l16
    l214
    s12
    t12
    RoHSJa
    Gewicht0,038 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 412.1
    Order designationGN 412.1-35-M10X1-1
    EAN4045525517240
    Manufacturer designation (German)Haltestücke, Zink-Druckguss
    Order unitPiece
    Customs tariff number79070000
    eCl@ss 5.1.490909090
