Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Bolzendurchmesser d1 | 10 |
|---|
| Form | A - ohne Kontermutter |
|---|
| d2 | M 20 x 1,5 |
|---|
| d3 | 31 |
|---|
| e | 25,4 |
|---|
| l1 ≈ | 91 |
|---|
| l2 | 10 |
|---|
| l3 | 33 |
|---|
| l4 | 10 |
|---|
| l5 min. | 30 |
|---|
| sw | 22 |
|---|
| Federdruck in N ≈ Anfang | 17 |
|---|
| Ende | 40 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,140 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 617.1 |
|---|
| Order designation | GN 617.1-10-A-NI |
|---|
| EAN | 4045525316409 |
|---|

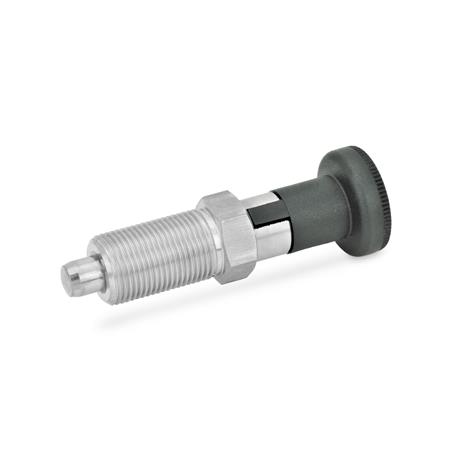

| Manufacturer designation (German) | Rastbolzen mit Rastsperre Edelstahl / Kunststoff-Knopf |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
