Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 6 |
|---|
| Aufnahmegewinde d2 | M 16 x 1,5 |
|---|
| Form | A - ohne Kontermutter |
|---|
| Werkstoff | ZD - Zink-Druckguss |
|---|
| l1 | 56,5 |
|---|
| l2 | 10 |
|---|
| l3 | 28 |
|---|
| l4 | 30 |
|---|
| sw | 18 |
|---|
| Max. Anzugsmoment in Nm | 20 |
|---|
| Federdruck in N ≈ Anfang | 11 |
|---|
| Ende | 30 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,045 kg |
|---|

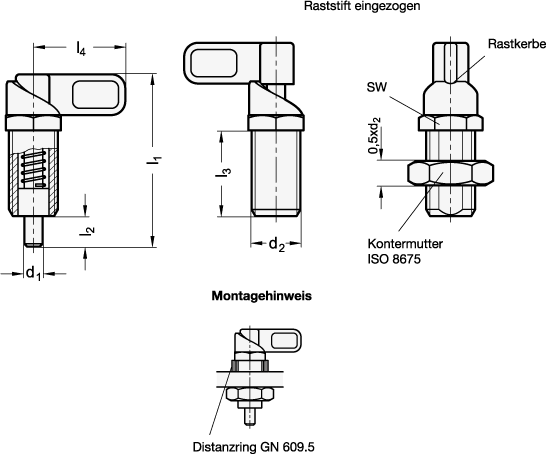

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 612.8 |
|---|
| Order designation | GN 612.8-6-M16X1,5-A |
|---|
| EAN | 4045525722101 |
|---|
| Manufacturer designation (German) | Rastriegel, Zink-Druckguss |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73182900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
