Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 5 |
|---|
| Aufnahmegewinde d2 | M 8 |
|---|
| Form | B - ohne Rastsperre, ohne Kontermutter |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| d3 | 3 |
|---|
| e | 9,2 |
|---|
| l1 | 42 |
|---|
| l2 min. | 12 |
|---|
| l3 | 27 |
|---|
| l4 | 3,1 |
|---|
| l5 min. | 19,5 |
|---|
| sw | 8 |
|---|
| max. Anzugsmoment in Nm | 4,5 |
|---|
| Federdruck in N≈ Anfang | 3,5 |
|---|
| Ende | 13,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,014 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 7017 |
|---|
| Order designation | GN 7017-5-M8-B-NI |
|---|
| EAN | 4045525365513 |
|---|

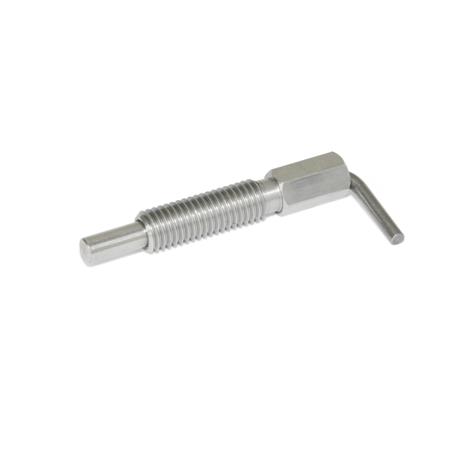

| Manufacturer designation (German) | Edelstahl-Rastbolzen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
