Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 5 |
|---|
| Länge l1 | 6 |
|---|
| Form | C - mit Rastsperre |
|---|
| Werkstoff | ZD - Zink-Druckguss |
|---|
| b1 | 40 |
|---|
| b2 | 18 |
|---|
| d2 | 10 |
|---|
| d3 | 25 |
|---|
| d4 | 4,3 |
|---|
| k | 30 |
|---|
| l2 | 25,5 |
|---|
| l3 | 2,5 |
|---|
| l4 | 4 |
|---|
| l5 Rastweg | 6 |
|---|
| Federdruck in N ≈ Anfang | 6 |
|---|
| Ende | 16 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,038 kg |
|---|

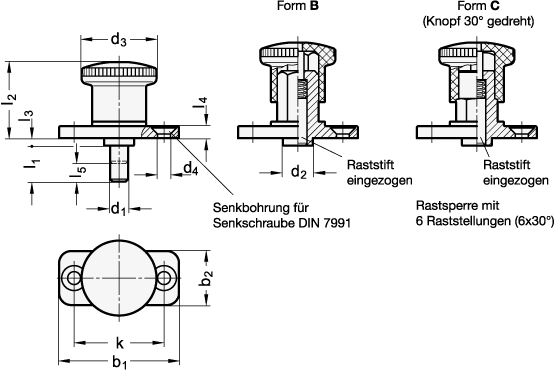

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 822.8 |
|---|
| Order designation | GN 822.8-5-6-C |
|---|
| EAN | 4045525722989 |
|---|
| Manufacturer designation (German) | Miniraster Zink-Druckguss / Kunststoff-Knopf |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
