Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 5 |
|---|
| Aufnahmegewinde d2 | M 10 x 1 |
|---|
| Form | LAK - Riegel linkssteigend, mit Kontermutter |
|---|
| Werkstoff | ST - Stahl |
|---|
| d3 | 10 |
|---|
| l1 | 37,5 |
|---|
| l2 | 6 |
|---|
| l3 | 19 |
|---|
| l4 | 21 |
|---|
| Federdruck in N ≈ Anfang | 7 |
|---|
| Ende | 20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,023 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 721 |
|---|
| Order designation | GN 721-5-M10X1-LAK |
|---|
| EAN | 4045525127807 |
|---|

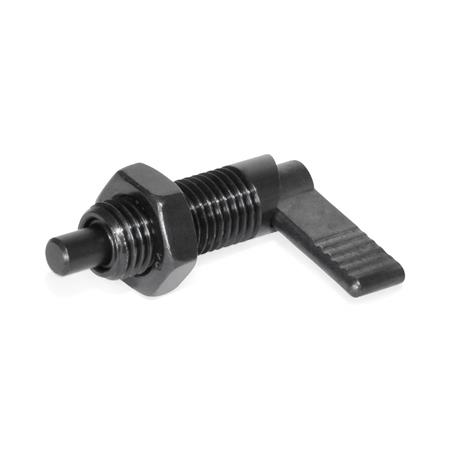

| Manufacturer designation (German) | Rastriegel, Stahl, ohne Rastfunktion |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73182900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
