Technical data (manufacturer information, German terms)
| Form | ENI - einseitig, Kugel Edelstahl |
|---|
| Außendurchmesser d1 | 8 |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 3 |
|---|
| b | 3,2 |
|---|
| l1 | 25 |
|---|
| l2 | 3,6 |
|---|
| l3 | 6 |
|---|
| s | 0,9 |
|---|
| Federdruck in N ≈ Anfang | 2,5 |
|---|
| Ende | 6,5 |
|---|
| Aufnahmebohrung | 8 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,009 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 716 |
|---|
| Order designation | GN 716-8-ENI |
|---|
| EAN | 4045525358379 |
|---|

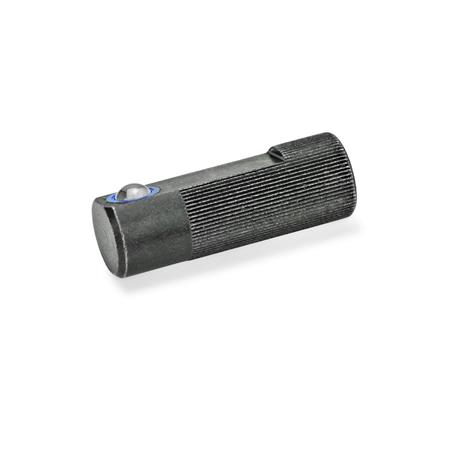

| Manufacturer designation (German) | Seitendruckstücke zum Einpressen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73182900 |
|---|
| eCl@ss 5.1.4 | 21130611 |
|---|
