Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Bolzendurchmesser d1 | 7 |
|---|
| Rastweg l1 | 6 |
|---|
| Form | B - ohne Rastsperre, ohne Kontermutter |
|---|
| l2 max. Hub | 8 |
|---|
| d2 | M 12 x 1,5 |
|---|
| d3 | 23 |
|---|
| d4 | 5 |
|---|
| d5 | M 3 |
|---|
| k | 20 |
|---|
| l3 | 20 |
|---|
| l4 | 48 |
|---|
| l5 | 22 |
|---|
| l6 | 6 |
|---|
| l7 | 31 |
|---|
| l8 | 17,6 |
|---|
| t | 7 |
|---|
| sw | 14 |
|---|
| Federdruck in N≈ Anfang | 6,5 |
|---|
| Ende | 19 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,033 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 817.8 |
|---|
| Order designation | GN 817.8-7-6-B-ST |
|---|
| EAN | 4045525964341 |
|---|

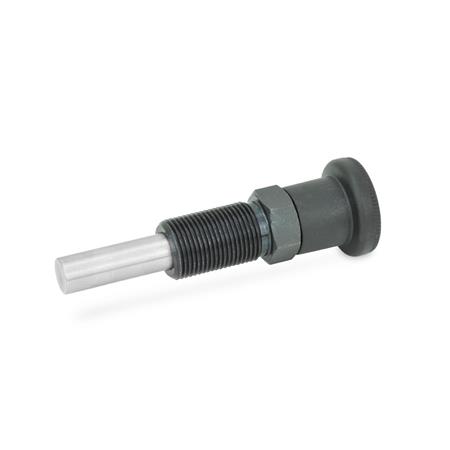

| Manufacturer designation (German) | Rastbolzen, demontierbar |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
