Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 10 |
|---|
| Rastweg l1 | 12 |
|---|
| Form | C - mit Rastsperre |
|---|
| Werkstoff | ZD - Zink-Druckguss |
|---|
| b | 16 |
|---|
| d2 | 28 |
|---|
| d3 | 5,3 |
|---|
| d4 | 38 |
|---|
| k | 26 |
|---|
| l2 | 58 |
|---|
| l3 | 26 |
|---|
| l4 | 8 |
|---|
| Federdruck in N≈ Anfang | 9,5 |
|---|
| Ende | 38 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,074 kg |
|---|

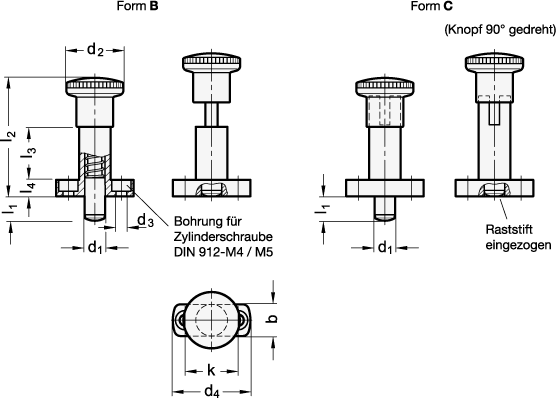

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 817.1 |
|---|
| Order designation | GN 817.1-10-12-C |
|---|
| EAN | 4045525111790 |
|---|
| Manufacturer designation (German) | Rastbolzen, Stahl / Kunststoff-Knopf |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
