Technical data (manufacturer information, German terms)
| Gewinde d1 | M 16 |
|---|
| Federweg w | 50 |
|---|
| Form | LSN - Edelstahl, verstärkter Federdruck |
|---|
| d2 | 8 |
|---|
| d3 | 13,4 |
|---|
| l1 | 148 |
|---|
| l2 | 35 |
|---|
| sw Innensechskant | 6 |
|---|
| Federdruck in N ≈ verstärkt (Form LS / LSN) Anfang | 13 |
|---|
| Ende | 75 |
|---|
| Artikel-Nr. Schraubendreher | 611.5-M16 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,117 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 611 |
|---|
| Order designation | GN 611-M16-50-LSN |
|---|
| EAN | 4045525749818 |
|---|

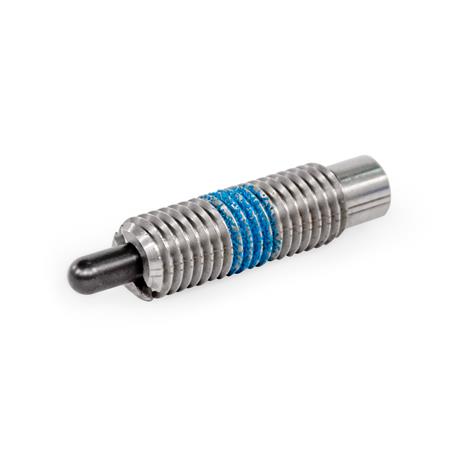

| Manufacturer designation (German) | Federnde Druckstücke, lange Ausführung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 21130611 |
|---|
