Technical data (manufacturer information, German terms)
| d1 | M 12 x 1,5 |
|---|
| Form | K - Kegelspitze, Stahl |
|---|
| Kennziffer | 2 - verstärkter Federdruck |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 9 |
|---|
| d3 | M 4 |
|---|
| d4 | 7,6 |
|---|
| e | 6,5 |
|---|
| l1 | 28 |
|---|
| l2 | 19 |
|---|
| l3 | 3 |
|---|
| l4 | 6 |
|---|
| r | 4,5 |
|---|
| s1 | 6 |
|---|
| s2 | 8 |
|---|
| s3 | 4 |
|---|
| t min. | 8 |
|---|
| Federdruck in N ≈ normal (Kennziffer 1) Anfang | 16 |
|---|
| Ende | 35 |
|---|
| Federdruck in N ≈ verstärkt (Kennziffer 2) Anfang | 18 |
|---|
| Ende | 56 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,013 kg |
|---|

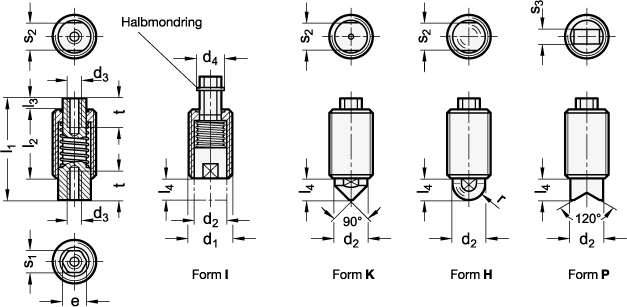

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 513 |
|---|
| Order designation | GN 513-M12X1,5-K-2 |
|---|
| EAN | 4045525495579 |
|---|
| Manufacturer designation (German) | Federelemente |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 21130600 |
|---|
