Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Bolzendurchmesser d1 | 4 |
|---|
| Form | C - mit Rastsperre |
|---|
| Aufnahmegewinde | M 8 x 0,75 |
|---|
| d3 | 21 |
|---|
| d4 | 15 |
|---|
| l1 | 26,5 |
|---|
| Rastweg | 5 |
|---|
| l3 | 5 |
|---|
| l4 min. | 3,5 |
|---|
| sw | 10 |
|---|
| Federdruck in N ≈ Anfang | 4,5 |
|---|
| Ende | 12 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,014 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 822 |
|---|
| Order designation | GN 822-4-C-NI |
|---|
| EAN | 4045525589575 |
|---|

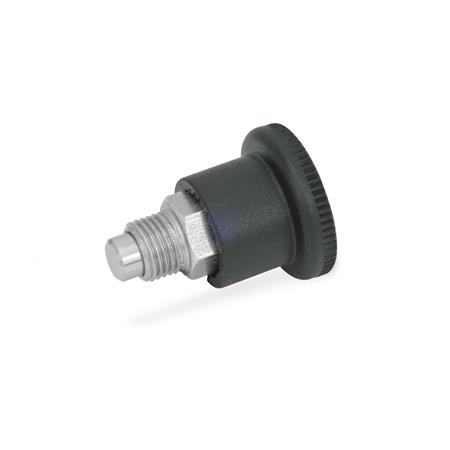

| Manufacturer designation (German) | Miniraster, Rastmechanik verdeckt |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
