Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Bolzendurchmesser d1 | 5 |
|---|
| Form | D - ohne Kontermutter, ohne Knopf |
|---|
| Kennziffer | 2 - Bolzen mit Innengewinde |
|---|
| d2 | M 10 x 1 |
|---|
| d3 | M 3 |
|---|
| l1 | 6 |
|---|
| l2 | 22 |
|---|
| l4 ≈ | 29 |
|---|
| t min. | 7 |
|---|
| Federdruck in N Anfang | 8 |
|---|
| Ende | 20 |
|---|
| Artikel-Nr. Schraubendreher | 613.1-5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,010 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 313 |
|---|
| Order designation | GN 313-5-D-2-ST |
|---|
| EAN | 4045525086654 |
|---|

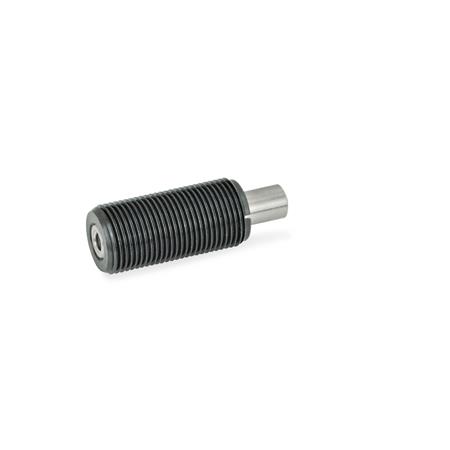

| Manufacturer designation (German) | Federbolzen, Stahl / Kunststoff-Knopf |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
