Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 8 |
|---|
| Form | AK - mit Knopf, mit Kontermutter |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | M 16 x 1,5 |
|---|
| d3 | 31 |
|---|
| d4 | M 8 |
|---|
| e | 21,9 |
|---|
| l1 ≈ | 69 |
|---|
| l2 | 8 |
|---|
| l3 | 26 |
|---|
| l4 | 8 |
|---|
| l5 min. | 23 |
|---|
| l6 | 12 |
|---|
| l7 | 10 |
|---|
| sw | 19 |
|---|
| Federdruck in N ≈ Anfang | 11 |
|---|
| Ende | 30 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,088 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 617 |
|---|
| Order designation | GN 617-8-AK |
|---|
| EAN | 4045525316096 |
|---|

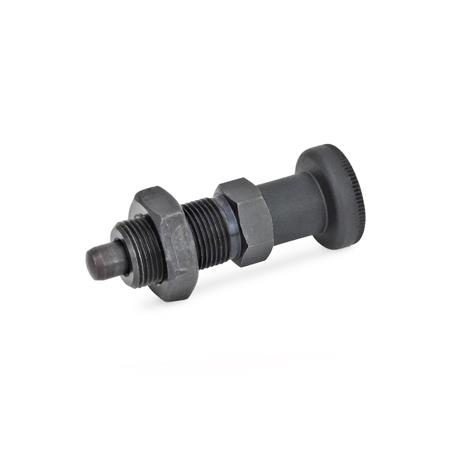

| Manufacturer designation (German) | Rastbolzen, Stahl / Kunststoff-Knopf |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
